loadingLoading... Catalyst 4

Catalyst 4

Name: Catalyst 4: Canada Catalyst 4 Transit
Manufacturer: Ki Mobility

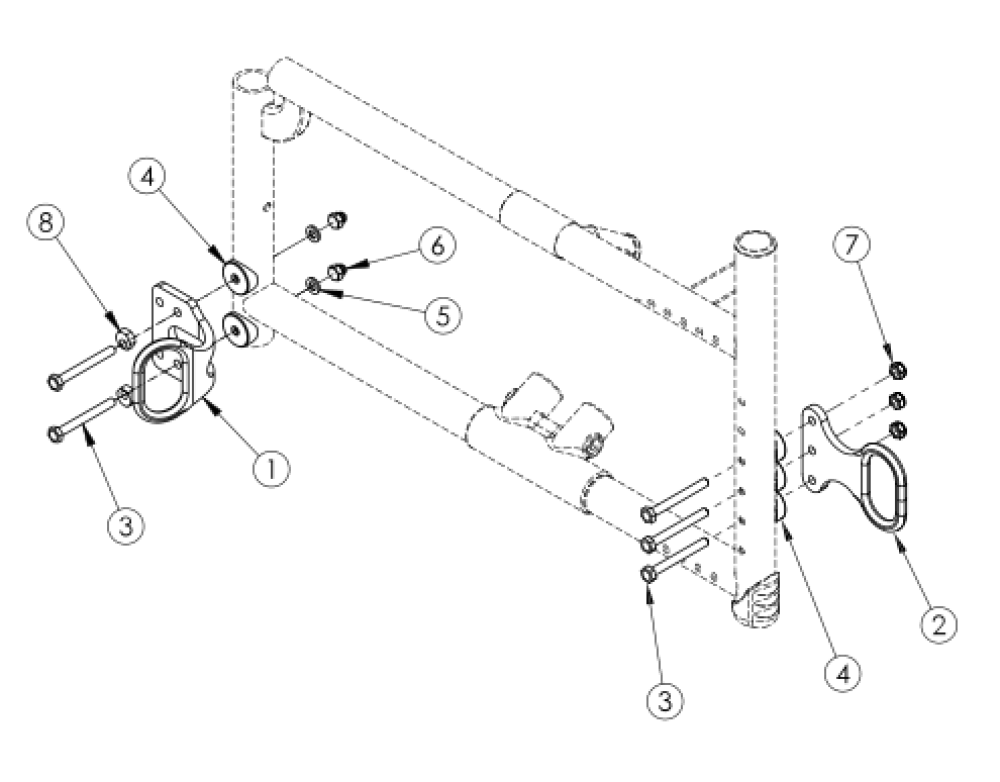

Canada Catalyst 4 Transit parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered. Only available in Canada on Catalyst 4. Not available on Catalyst 4C Not available with 250 lb or 350 lb weight capacity Requires Adjustable Axle Plate and Adjustable Axle Plate Rear Frames
Pos. Part # Description Price UOM Buy
3a 101826 M6 x 50 HHCS Blk Zn- Use quantity 2 if only Transit is present; Use quantity 1 if Transit and Anti-Tip bracket are present
$2.36
EA
3b 100676 M6 x 55 CLS10.9 DIN931 HHCS ZC- Use quantity 2 if Transit and Anti-Tip bracket are present. Use quantity 1 if Swing Away Arm bracket, Transit, and Anti-Tip bracket are present
$1.77
EA
3c 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC- Used to attach Front Transit Bracket. Use quantity 2 if Transit, Anti-Tip bracket and Swing Away Arm bracket are present
$1.77
EA
4 000056 Saddle 1 1/8"
$1.77
5 100746 M6 Flat Washer Blk Zn
$1.77
EA
6 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
7 100658 M6 Nylock Nut Blk Zn
$1.17
EA
8 100510 Eccentric Washer
$1.84
