Loading...Catalyst 4

Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts

Name: Catalyst 4: Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts
Manufacturer: Ki Mobility

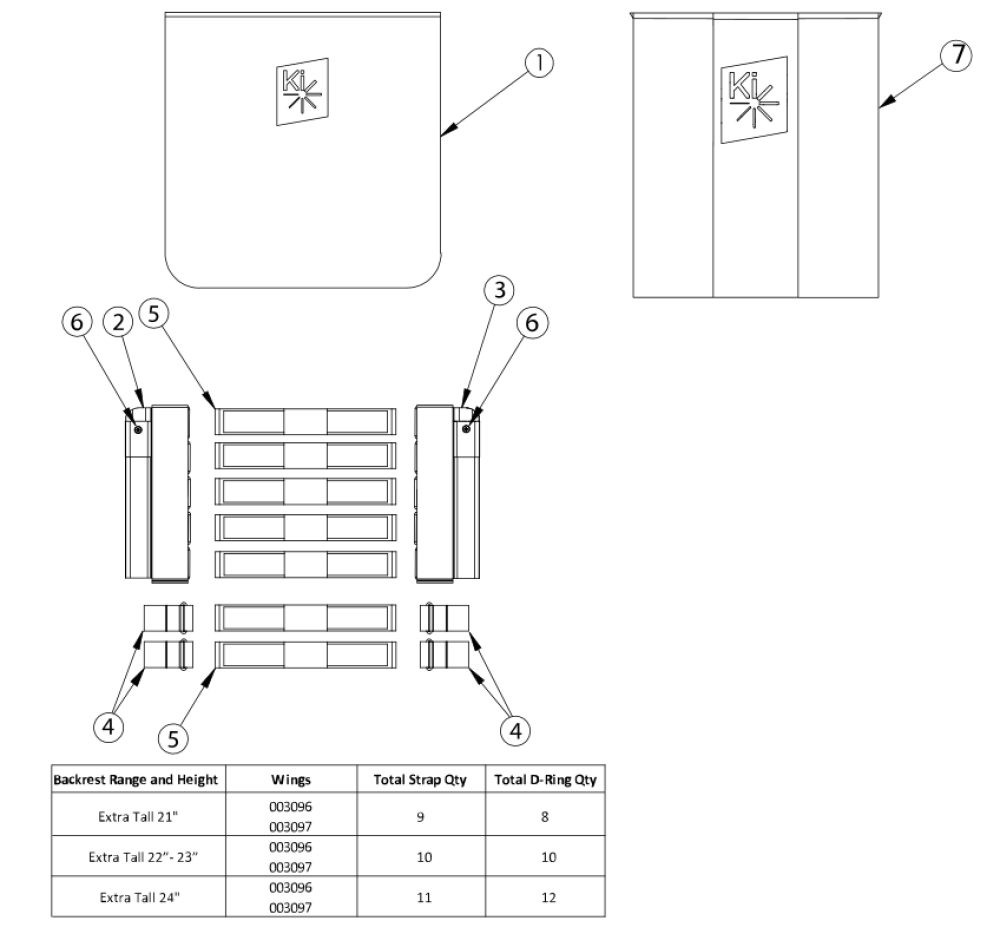

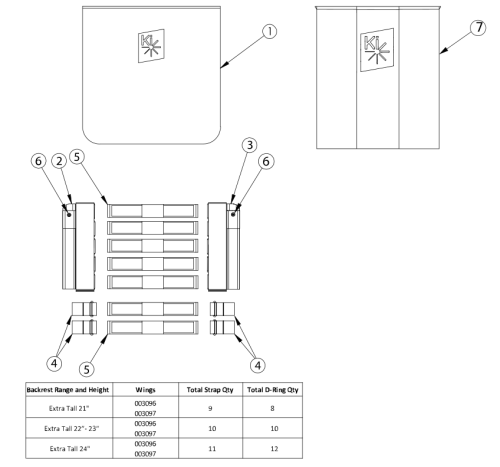

Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts parts diagram
(Click on image to enlarge)

Assemblies contain the cover, amount of straps and d-rings used for the tallest height of 24".
Pos.Part #DescriptionPriceBuy
1a003237Backrest Cover 16" Cat x 21-24"
$206.00
1b003047Backrest Cover 17" Cat x 21-24"
$164.80
1c003053Backrest Cover 18" Cat x 21-24"
$164.80
1d003059Backrest Cover 19" Cat x 21-24"
$164.80
1e003065Backrest Cover 20" Cat x 21-24"
$164.80
1f003071Backrest Cover 21" Cat x 21-24"
$164.80
1g003075Backrest Cover 22" Cat x 21-24"
$180.25
2003097Tension Adjustable Upholstery Wing 9.5" Height Left
$61.80
3003096Tension Adjustable Upholstery Wing 9.5" Height Right
$61.80
4100973Back Upholstery D-Ring
$10.30
5a002533Back Upholstery Strap 19.3"- Used on 16" chair widths
$12.36
5b002534Back Upholstery Strap 21.3"- Used on 17" chair widths
$12.36
5c002535Back Upholstery Strap 23.3"- Used on 18" chair widths
$12.36
5d002536Back Upholstery Strap 25.3"- Used on 19" chair widths
$15.45
5e002537Back Upholstery Strap 27.3"- Used on 20" chair widths
$15.45
5f002538Back Upholstery Strap 29.3"- Used on 21" chair widths
$15.45
5g002539Back Upholstery Strap 31.3"- Used on 22" chair widths
$15.45
6100734M5 x 16 DIN7985 PHMS ZC
$1.55
1a, 2 - 4, 5a506794Back Upholstery Assembly Tension Adjustable 16W, 21" - 24", Extra Tall Backposts
$572.00
1b, 2 - 4, 5b506795Back Upholstery Assembly Tension Adjustable 17W, 21" - 24", Extra Tall Backposts
$532.00
1c, 2 - 4, 5c506796Back Upholstery Assembly Tension Adjustable 18W, 21" - 24", Extra Tall Backposts
$532.00
1d, 2 - 4, 5d506797Back Upholstery Assembly Tension Adjustable 19W, 21" - 24", Extra Tall Backposts
$565.00
1e, 2 - 4, 5e506798Back Upholstery Assembly Tension Adjustable 20W, 21" - 24", Extra Tall Backposts
$565.00
1f, 2 - 4, 5f506799Back Upholstery Assembly Tension Adjustable 21W, 21" - 24", Extra Tall Backposts
$565.00
1g, 2 - 4, 5g506800Back Upholstery Assembly Tension Adjustable 22W, 21" - 24", Extra Tall Backposts
$580.00
