Catalyst 4
Name: Catalyst 4: Projection Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

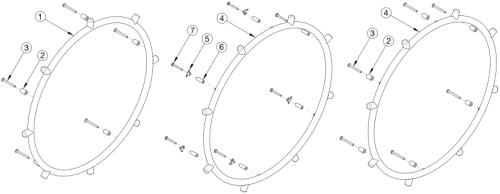

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 3a | 502171 | Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels | Used with X Core Mag wheels |
$35.28
|
EA |
|
| 5 - 7 | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with Ki Spoke, MAXX Spoke, and Spoke wheels | Used with Ki Spoke, MAXX Spoke, and Spoke wheels |
$41.16
|
EA |
|
| 2, 3b | 117377 | Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels | Used with MAXX Mag wheels |
$34.80
|
EA |
|
| 4a | 112824 | Handrim Projection, Vertical, 6 Rivet Nut 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels. Replaced 100569. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels. Replaced 100569. |
$218.31
|
EA |
|
| 4b | 112825 | Handrim Projection, Vertical, 6 Rivet Nut 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels. Replaced part 200547. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels. Replaced part 200547. |
$229.23
|
EA |
|
| 4c | 200548 | Handrim Projection, Vertical, 6 Rivet Nut 25"- Used on 25" Ki Spoke and 25" MAXX Spoke wheels | Used on 25" Ki Spoke and 25" MAXX Spoke wheels |
$229.23
|
EA |
|
| 4d | 112827 | Handrim Projection Vertical 6 Rivet Nut 26"- Used on 26" Ki Spoke and 26" MAXX Spoke wheels | Used on 26" Ki Spoke and 26" MAXX Spoke wheels |
$229.23
|
EA |
|
| 2 | 100629 | Handrim Spacer Alum Ano Riv- Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed) | Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed) |
$1.23
|
EA |
|
| 3a | 100724 | M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels | Used with X Core Mag wheels |
$1.17
|
|
|
| 3b | 103545 | M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels | Used with MAXX Mag wheels |
$4.56
|
|
|
| 5 | 100698 | Handrim Tab- Used with Ki Spoke, MAXX Spoke, and Spoke wheels | Used with Ki Spoke, MAXX Spoke, and Spoke wheels |
$4.45
|
|
|
| 6 | 100653 | Handrim Spacer Spoke- Used with Ki Spoke, MAXX Spoke, and Spoke wheels | Used with Ki Spoke, MAXX Spoke, and Spoke wheels |
$1.17
|
|
|
| 7 | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Ki Spoke, MAXX Spoke, and Spoke wheels | Used with Ki Spoke, MAXX Spoke, and Spoke wheels |
$1.77
|
|
