Name: Catalyst 4: Angle Adjustable Footplate - Elevating Leg Rest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

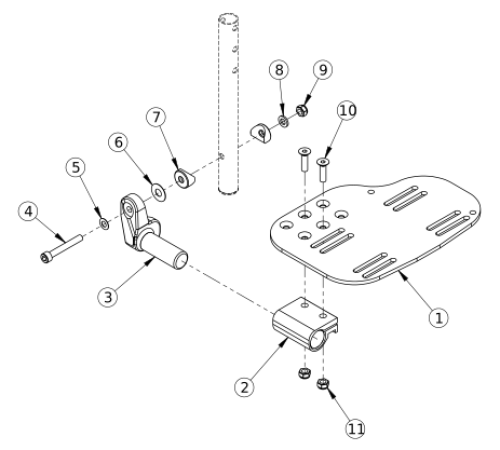

Part Picture
(Click on image to enlarge)
Sizes for assemblies are based on seat width with straight frame; if Tilt chair has Offset Frame, add 2" to seat width.
If changing footplate style, new extension tubes may be needed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2, 3b, 4 - 11 | 100252 | Footplate Angle Adjustable 14-15 Wide Extension Mount Left/ELR Right Assembly |
$135.13
|
EA |
|
|
| 1b, 2, 3a, 4 - 11 | 100253 | Footplate Angle Adjustable 14-15 Wide Extension Mount Right/ELR Left Assembly |
$135.13
|
EA |
|
|
| 1a, 1b, 2, 3a, 3b, 4 - 11 | 100254 | Footplate Angle Adjustable 14-15 Wide Extension Mount/ELR PAIR Assembly |
$270.28
|
EA |
|
|
| 1c, 2, 3b, 4 - 11 | 100255 | Footplate Angle Adjustable 16-17 Wide Extension Mount Left/ELR Right Assembly |
$135.13
|
EA |
|
|
| 1d, 2, 3a, 4 - 11 | 100256 | Footplate Angle Adjustable 16-17 Wide Extension Mount Right/ELR Left Assembly |
$135.13
|
EA |
|
|
| 1c, 1d, 2, 3a, 3b, 4 - 11 | 100257 | Footplate Angle Adjustable 16-17 Wide Extension Mount/ELR PAIR Assembly |
$270.28
|
EA |
|
|
| 1e, 2, 3b, 4 - 11 | 100258 | Footplate Angle Adjustable 18-24 Wide Extension Mount Left/ELR Right Assembly |
$135.13
|
EA |
|
|
| 1f, 2, 3a, 4 - 11 | 100259 | Footplate Angle Adjustable 18-24 Wide Extension Mount Right/ELR Left Assembly |
$135.13
|
EA |
|
|
| 1e, 1f, 2, 3a, 3b, 4 - 11 | 100260 | Footplate Angle Adjustable 18-24 Wide Extension Mount/ELR PAIR Assembly |
$270.28
|
EA |
|
|
| 2, 3b, 4 - 11 | 502202 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Left |
$54.30
|
EA |
|
|
| 2, 3a, 4 - 11 | 502203 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Right |
$54.30
|
EA |
|
|
| 2, 3a, 3b, 4 - 11 | 502204 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Pair |
$108.61
|
EA |
|
|
| 1a | 000105 | Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right) |
$72.35
|
EA |
|
|
| 1b | 000106 | Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left) |
$72.35
|
EA |
|
|
| 1c | 000107 | Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right) |
$72.35
|
EA |
|
|
| 1d | 000108 | Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left) |
$72.35
|
EA |
|
|
| 1e | 000109 | Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right) |
$72.35
|
EA |
|
|
| 1f | 000110 | Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left) |
$72.35
|
EA |
|
|
| 2 | 100502 | Angle Adj Footplate Clamp 2" |
$15.11
|
EA |
|
|
| 3a | 000047 | Footplate Angle Adjustable Casting 3/4 Right |
$22.95
|
EA |
|
|
| 3b | 000049 | Footplate Angle Adjustable Casting 3/4" Left |
$22.95
|
EA |
|
|
| 4 | 101472 | M6 x 45 SHCS BLK ZC |
$1.81
|
EA |
|
|
| 5 | 101455 | M6 Belleville Washer (.252 x .551 x .050) |
$1.81
|
EA |
|
|
| 6 | 000428 | Wear Washer |
$3.00
|
EA |
|
|
| 7 | 000053 | Saddle 3/4" |
$1.81
|
|
||
| 8 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 9 | 120030 | M6 Top Lock Nut |
$1.19
|
EA |
|
|
| 10 | 100662 | M6 x 25 FSHCS BLK ZC |
$1.81
|
|
||
| 11 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
