Name: Catalyst 4: Catalyst 4 Side Frame Assembly - Open Seating (seating System)
Manufacturer: Ki Mobility

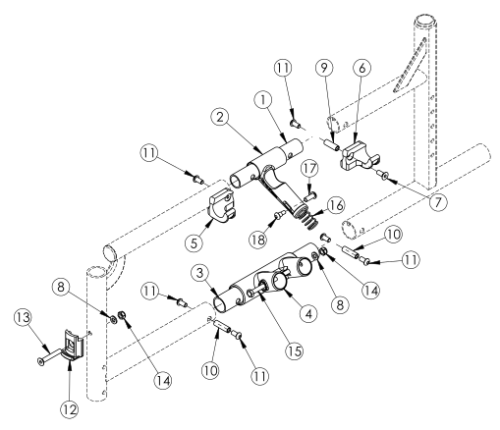

Catalyst 4 Side Frame Assembly - Open Seating (seating System) parts diagram
(Click on image to enlarge)

Upper Pivot Assemblies are based on seat width
Pos. Part # Description Price UOM Buy
2b, 16 - 18 500024 Upper Pivot Assembly 14" Width- This kit also contains the 14" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500025 Upper Pivot Assembly 15" Width- This kit also contains the 15" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500026 Upper Pivot Assembly 16" Width- This kit also contains the 16" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500027 Upper Pivot Assembly 17" Width- This kit also contains the 17" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500028 Upper Pivot Assembly 18" Width- This kit also contains the 18" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500029 Upper Pivot Assembly 19" Width- This kit also contains the 19" slider link (not pictured)
$50.11
EA
2a, 16 - 18 500030 Upper Pivot Assembly 20" Width- This kit also contains the 20" slider link (not pictured)
$50.11
EA
2a, 16 - 18 501479 Upper Pivot Assembly 21/22" Width- This kit also contains the 21/22" slider link (not pictured)
$50.11
EA
1 000011 Frame Connector Upper CAT
$5.12
EA
3 000009 Frame Connector Lower CAT
$5.12
EA
4a 000001 Lower Frame Pivot CAT- Used with round style cross braces which are used on 14" - 20" wide chairs with Standard Weight Capacity
$31.02
EA
4b 002806 Lower Frame Pivot CAT- Used with oval style cross braces which are used on 21" -22" wide chairs or chairs with Heavy Duty Option (effective 6/15/16)
$11.77
EA
5 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.35
EA
6 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.35
EA
7 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.36
EA
8 100746 M6 Flat Washer Blk Zn
$1.77
EA
9 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
10 000066 M6 x 27 Threaded Barrel
$4.99
11 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
12 000336 Latch Block
$42.00
EA
13 101819 M6 x 40 FHCS Blk Zn
$1.17
EA
14 100658 M6 Nylock Nut Blk Zn
$1.17
EA
15 100704 M6 x 90 CLS8.8 DIN931 HHCS ZC
$1.77
EA
