Catalyst 4
Name: Catalyst 4: Catalyst 4 Footplates - Composite
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

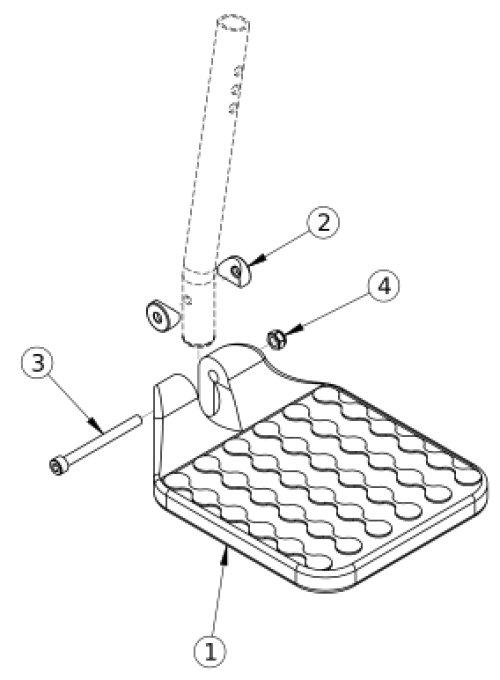

Part Picture
(Click on image to enlarge)
Sizes for footplates are based on seat width.
Only compatible with extension tube hangers.
If changing footplate style, new extension tubes may be needed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2 - 4 | 112895 | Hardware Assembly for Composite Footplate |
$7.07
|
EA |
|
|
| 1a | 100537 | Footplate Composite 14-15" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 1b | 100540 | Footplate Composite 16-17" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 1c | 100542 | Footplate Composite 18-24" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 2 | 000053 | Saddle 3/4" |
$1.81
|
|
||
| 3 | 101849 | M6 x 65 SHCS Blk Zn |
$2.41
|
EA |
|
|
| 4 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
