Catalyst 4

Name: Catalyst 4: Catalyst Swing Away Front Frame
Manufacturer: Ki Mobility

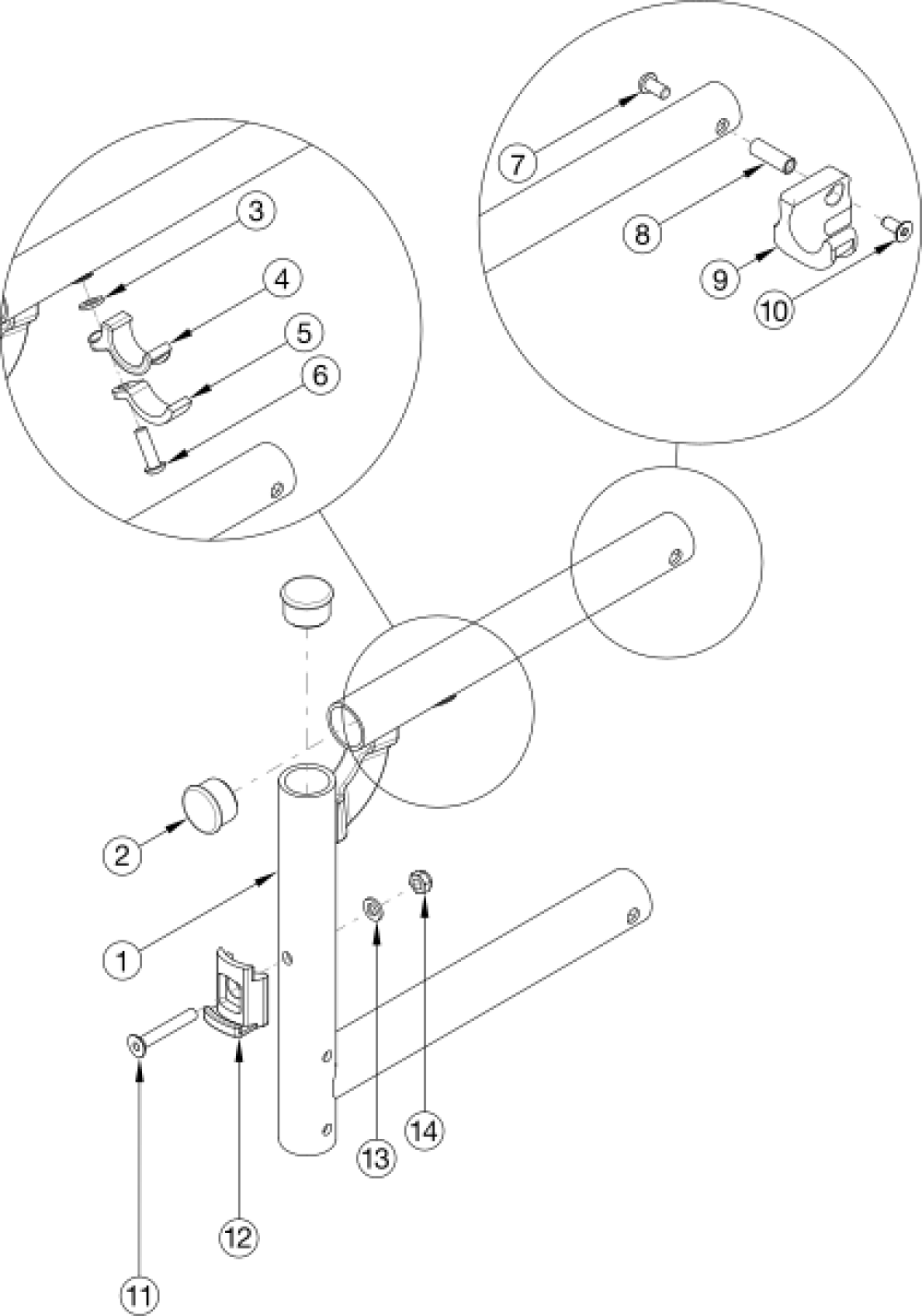

Catalyst Swing Away Front Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
3 - 6 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each
$19.48
EA
7, 8, 9a, 10 111569 Seat Hook and Support Hardware Kit Seating System Right Front Frame / Left Rear Frame Catalyst- This kit contains quantity of 1 each
$33.09
EA
7, 8, 9b, 10 111570 Seat Hook and Support Hardware Kit, Seating System Left Front Frame / Right Rear Frame Catalyst- This kit contains quantity of 1 each
$33.09
EA
1a, 2 100086_ _ _ Frame Assembly, Catalyst Front, Left 14 _ _ _ N/A EA Please Call
1b, 2 100087_ _ _ Frame Assembly, Catalyst Front, Left 15 _ _ _ N/A EA Please Call
1c, 2 100088_ _ _ Frame Assembly, Catalyst Front, Left 16 _ _ _ N/A EA Please Call
1d, 2 100089_ _ _ Frame Assembly, Catalyst Front, Left 17 _ _ _ N/A EA Please Call
1e, 2 501605_ _ _ Frame Assembly, Catalyst Front, Left 18 _ _ _ N/A EA Please Call
1f, 2 501606_ _ _ Frame Assembly, Catalyst Front, Left 19 _ _ _ N/A EA Please Call
1g, 2 100090_ _ _ Frame Assembly, Catalyst Front, Left 20 _ _ _ N/A EA Please Call
1h, 2 100168_ _ _ Frame Assembly, Catalyst Front, Right 14 _ _ _ N/A EA Please Call
1i, 2 100169_ _ _ Frame Assembly, Catalyst Front, Right 15 _ _ _ N/A EA Please Call
1j, 2 100170_ _ _ Frame Assembly, Catalyst Front, Right 16 _ _ _ N/A EA Please Call
1k, 2 100171_ _ _ Frame Assembly, Catalyst Front, Right 17 _ _ _ N/A EA Please Call
1l, 2 501607_ _ _ Frame Assembly, Catalyst Front, Right 18 _ _ _ N/A EA Please Call
1m, 2 501608_ _ _ Frame Assembly, Catalyst Front, Right 19 _ _ _ N/A EA Please Call
1n, 2 100172_ _ _ Frame Assembly, Catalyst Front, Right 20 _ _ _ N/A EA Please Call
1c, 2 114305_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Left 16 _ _ _ N/A EA Please Call
1d, 2 114306_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Left 17 _ _ _ N/A EA Please Call
1e, 2 114343_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Left 18 _ _ _ N/A EA Please Call
1f, 2 114344_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Left 19 _ _ _ N/A EA Please Call
1g, 2 114307_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Left 20 _ _ _ N/A EA Please Call
1j, 2 114315_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Right 16 _ _ _ N/A EA Please Call
1k, 2 114316_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Right 17 _ _ _ N/A EA Please Call
1l, 2 114345_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Right 18 _ _ _ N/A EA Please Call
1m, 2 114346_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Right 19 _ _ _ N/A EA Please Call
1n, 2 114317_ _ _ Frame Assembly, Catalyst Front with Flip Back Arm Modification, Right 20 _ _ _ N/A EA Please Call
2 100804 Tube End Plug 1"- Quantity 2 when omitting hangers
$1.77
EA
3 100831 1/2" Washer OD .040" Thick
$1.77
EA
4 000003 Seat Hook, Catalyst
$8.62
EA
5 000004 Seat Hook Support, Catalyst
$7.34
EA
6 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.77
EA
7 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
8 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
9a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.35
EA
9b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.35
EA
10 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.36
EA
11 101819 M6 x 40 FHCS Blk Zn
$1.17
EA
12 000336 Latch Block
$42.00
EA
13 100746 M6 Flat Washer Blk Zn
$1.77
EA
14 100658 M6 Nylock Nut Blk Zn
$1.17
EA
