Name: Catalyst 4: Catalyst Side Frame Assembly
Manufacturer: Ki Mobility

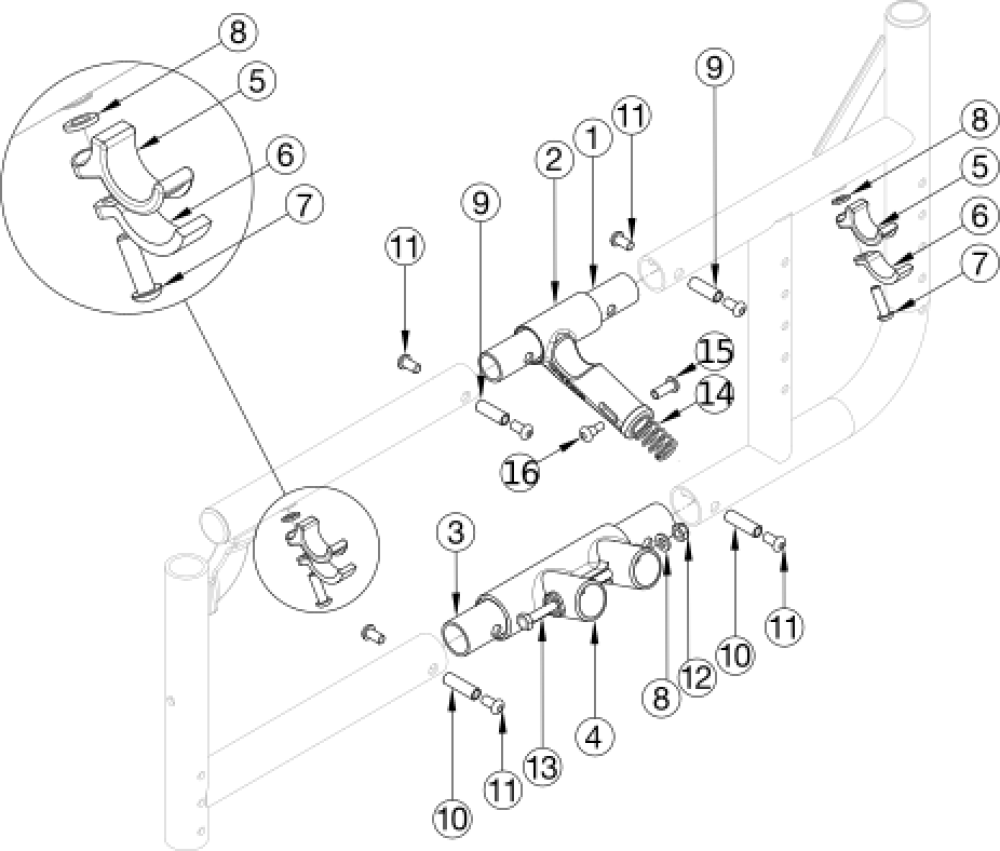

Catalyst Side Frame Assembly parts diagram
(Click on image to enlarge)

Upper Pivot Assemblies are based on seat width
Pos. Part # Description Price UOM Buy
2a, 16 - 18 500024 Upper Pivot Assembly 14" Width- This kit also contains the 14" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500025 Upper Pivot Assembly 15" Width- This kit also contains the 15" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500026 Upper Pivot Assembly 16" Width- This kit also contains the 16" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500027 Upper Pivot Assembly 17" Width- This kit also contains the 17" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500028 Upper Pivot Assembly 18" Width- This kit also contains the 18" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500029 Upper Pivot Assembly 19" Width- This kit also contains the 19" slider link (not pictured)
$50.11
EA
2b, 16 - 18 500030 Upper Pivot Assembly 20" Width- This kit also contains the 20" slider link (not pictured)
$50.11
EA
2b, 16 - 18 501479 Upper Pivot Assembly 21/22" Width- This kit also contains the 21/22" slider link (not pictured)
$50.11
EA
5, 6, 7a, 8 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each
$19.48
EA
5, 6, 7b, 8 114528 Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$20.07
EA
1 000011 Frame Connector Upper CAT
$5.12
EA
3 000009 Frame Connector Lower CAT
$5.12
EA
4a 000001 Lower Frame Pivot CAT- Used when Titanium cross braces are present. Used on Catalyst 4 chairs with standard weight capacity and seat widths 14"-20" with seating system cross braces.
$31.02
EA
4b 002806 Lower Frame Pivot CAT- Effective 4/13/16 on 21 and 22" wide chairs with standard cross braces starting with serial numbers C4017705, C4HD002593, C5030818, C5HD002749, C5TH003679. Effective 6/15/16 on 14-20" wide chairs with standard cross braces starting with serial numbers C4018744, C4HD002701, C5032544, C5037980, C5HD002834. Effective 6/15/16 on Catalyst 5 chairs with 14"-22" chair widths with seating system cross braces starting with serial numbers C5032544, C5037980, C5HD002834. Effective 6/15/16 on Catalyst 4 chairs with heavy duty option or 21"-22" chair widths with seating system cross braces starting with serial numbers C4018744, C4HD002701.
$11.77
EA
502177 Lower Frame Pivot and Catalyst Oval-Style Cross Brace Hardware Kit (Pair)- Used with oval-style cross braces. See Catalyst Aluminum Cross Braces page or Open Seating (Seating System) Cross Braces page for all parts in this kit.
$50.34
EA
5 000003 Seat Hook, Catalyst
$8.62
EA
6 000004 Seat Hook Support, Catalyst
$7.34
EA
7a 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.77
EA
7b 101180 M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity
$2.36
EA
8 100831 1/2" Washer OD .040" Thick
$1.77
EA
9 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
10 000066 M6 x 27 Threaded Barrel
$4.99
11 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
