Loading...Catalyst 5

Catalyst 5

Name: Catalyst 5: Catalyst Iv Pole
Manufacturer: Ki Mobility

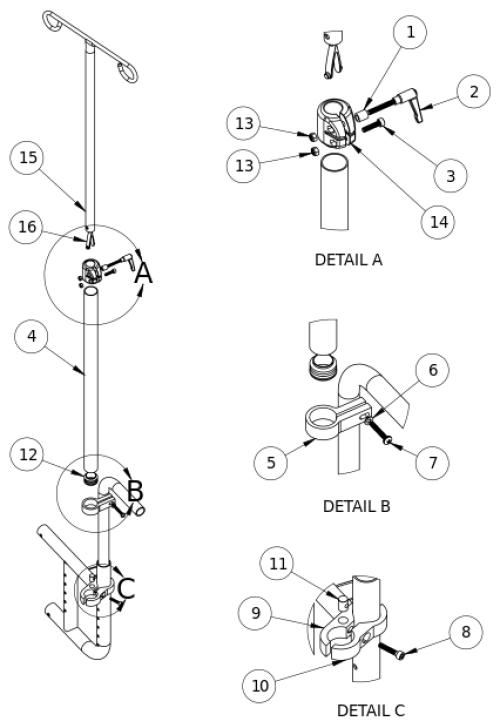

Catalyst Iv Pole parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1 - 3, 4a, 5 - 7, 8a, 8b, 9 - 16502404IV Pole Assembly 9-12" Back Height, Catalyst
$280.39
1 - 3, 4b, 5 - 7, 8a, 8b, 9 - 17502405IV Pole Assembly 13-16" Back Height, CAT/LFT
$280.39
1 - 3, 4c, 5 - 7, 8a, 8b, 9 - 18502406IV Pole Assembly 17-20" Back Height, CAT/LFT
$280.39
1, 2, 3, 13, 14502401IV Pole Top Clamp Assembly
$44.48
5, 6, 7502402IV Pole Middle Clamp Assembly, Catalyst
$39.11
8a, 8b, 9, 10, 11502403IV Pole Bottom Clamp Assembly, Catalyst
$77.65
1102766Spacer 3/8R. X 7/16 x .218 ID.
$7.07
2102767Handle wM5 x 32L Threaded Stud
$29.47
3101843M5 x 20 SHCS Blk Zn
$0.53
4a002670IV Pole Outer Tube 20" Height
$30.01
4b002669IV Pole Outer Tube 24" Height
$32.15
4c002581IV Pole Outer Tube 28" Height
$34.29
5002707IV Pole Clamp Single 1-1/8"
$37.50
6101856Flat Washer, M5, Blk Zn
$0.53
7100696M5 x 30mm PPH Capscrew
$1.58
8a100780M6 x 25 SHCS ZC- Used on Catalyst 5 chairs
$2.10
8b102627M6 X 30 SHCS BLK ZC- Used on Catalyst 4 chairs
$1.05
9002685IV Pole Clamp 1-1/8" 1" Thru 1-1/4" w/ Cross Dowel Hole
$37.50
10002686IV Pole Clamp 1-1/8" 1" Thru 1-1/4"
$37.50
11102768M6 Barrel Nut
$5.25
12100532Tube End Plug 1 1/8"
$2.63
13100657M5 Nylock Nut Blk Zn
$0.53
14002395Footrest Clamp Left LW
$6.96
15002585IV Pole Upper
$26.80
16102769Snap Button Plastic
$3.49
