Name: Catalyst 5: Residual Limb Support
Manufacturer: Ki Mobility

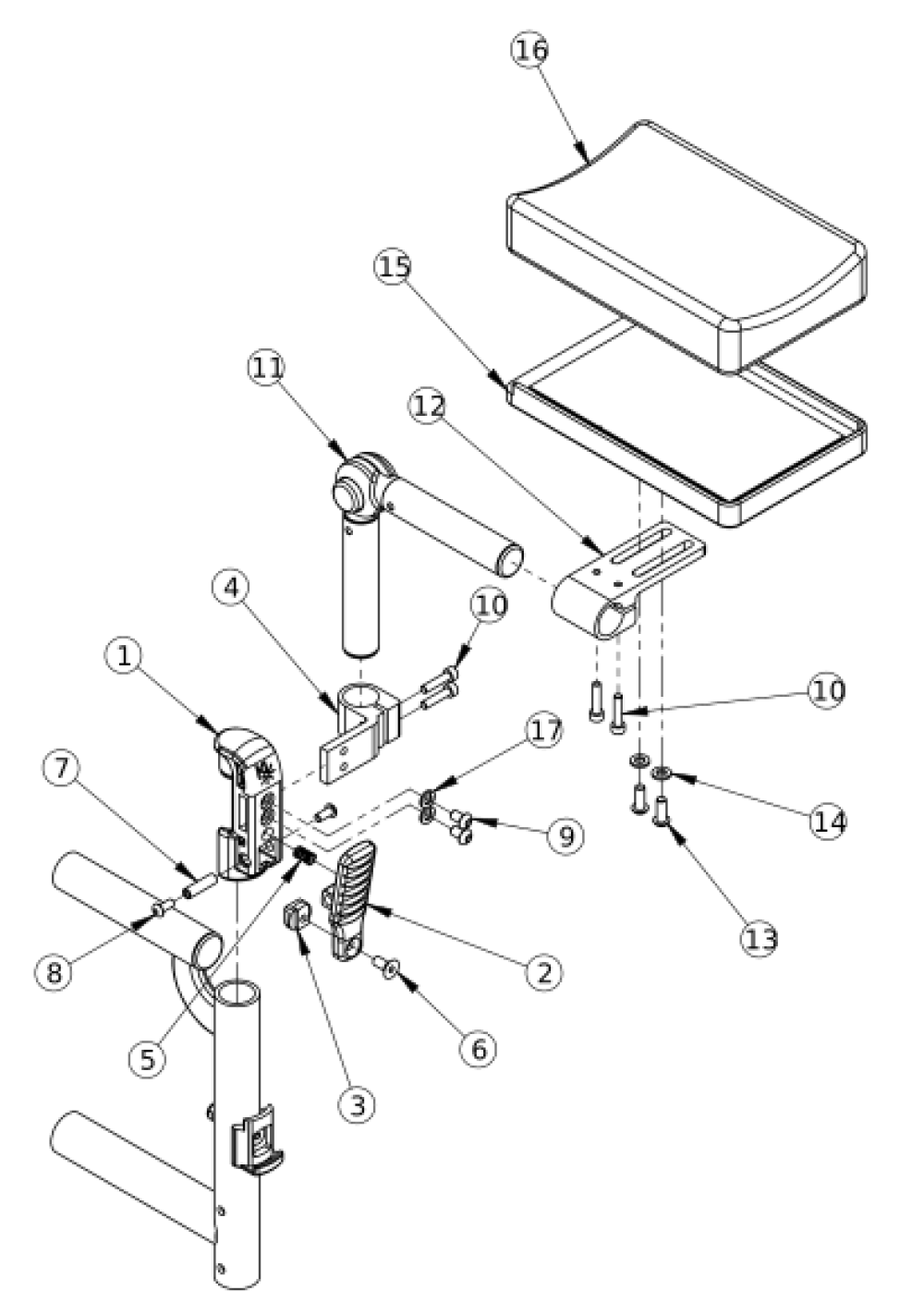

Residual Limb Support parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1 - 14, 15a, 16a, 17502342Residual Limb Support Assembly, Mesh 5 x 8, Right
$423.29
1 - 14, 15a, 16a, 17502343Residual Limb Support Assembly, Mesh 5 x 8, Left
$423.29
1 - 14, 15b, 16b, 17502344Residual Limb Support Assembly, Mesh 7 x 10, Right
$423.29
1 - 14, 15b, 16b, 17502345Residual Limb Support Assembly, Mesh 7 x 10, Left
$423.29
1 - 14, 15c, 16c, 17502346Residual Limb Support Assembly, Mesh 9 x 10, Right
$423.29
1 - 14, 15c, 16c, 17502347Residual Limb Support Assembly, Mesh 9 x 10, Left
$423.29
1 - 14, 15d, 16d, 17502348Residual Limb Support Assembly, Mesh 9 x 14, Right
$423.29
1 - 14, 15d, 16d, 17502349Residual Limb Support Assembly, Mesh 9 x 14, Left
$423.29
1 - 14, 15e, 16e, 17502350Residual Limb Support Assembly, Mesh 11 x 10, Right
$423.29
1 - 14, 15e, 16e, 17502351Residual Limb Support Assembly, Mesh 11 x 10, Left
$423.29
1 - 14, 15f, 16f, 17502352Residual Limb Support Assembly, Mesh 11 x 14, Right
$423.29
1 - 14, 15f, 16f, 17502353Residual Limb Support Assembly, Mesh 11 x 14, Left
$423.29
1 - 14, 15a, 16g, 17502354Residual Limb Support Assembly, Smooth 5 x 8, Right
$423.29
1 - 14, 15a, 16g, 17502355Residual Limb Support Assembly, Smooth 5 x 8, Left
$423.29
1 - 14, 15b, 16h, 17502356Residual Limb Support Assembly, Smooth 7 x 10, Right
$423.29
1 - 14, 15b, 16h, 17502357Residual Limb Support Assembly, Smooth 7 x 10, Left
$423.29
1 - 14, 15c, 16i, 17502358Residual Limb Support Assembly, Smooth 9 x 10, Right
$423.29
1 - 14, 15c, 16i, 17502359Residual Limb Support Assembly, Smooth 9 x 10, Left
$423.29
1 - 14, 15d, 16j, 17502360Residual Limb Support Assembly, Smooth 9 x 14, Right
$423.29
1 - 14, 15d, 16j, 17502361Residual Limb Support Assembly, Smooth 9 x 14, Left
$423.29
1 - 14, 15e, 16k, 17502362Residual Limb Support Assembly, Smooth 11 x 10, Right
$423.29
1 - 14, 15e, 16k, 17502363Residual Limb Support Assembly, Smooth 11 x 10, Left
$423.29
1 - 14, 15f, 16l, 17502364Residual Limb Support Assembly, Smooth 11 x 14, Right
$423.29
1 - 14, 15f, 16l, 17502365Residual Limb Support Assembly, Smooth 11 x 14, Left
$423.29
1 - 10, 17502326Residual Limb Support Mount Assembly, Right
$58.93
1 - 10, 17502327Residual Limb Support Mount Assembly, Left
$58.93
10, 12 - 14502329Residual Limb Support Clamp and Mounting Hardware Kit
$31.42
1002415Residual Limb Support Hanger
$4.82
2002416Residual Limb Support Hanger Lever
$3.75
3002417Residual Limb Support Hanger Lever Insert
$8.84
4002418Residual Limb Support Bolt On Clamp
$19.29
5100693Compression Spring 0.34" OD x 0.70 LG
$1.61
6101594M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.10
7000073M5 x 24 Threaded Barrel
$3.78
8100669M5 x 10 BTN SHCS BLKZC w/Patch ()
$1.58
9101184M6 x 10 BTN SHCS BLKZC w/Patch ()
$1.58
10101843M5 x 20 SHCS Blk Zn ()
$0.53
11502328Residual Limb Support Pad Mount Tube Assembly
$224.71
12002656Pad Mount Clamp
$26.80
13102634M6 X 1.0 X 16 BHCS BLK ZC ()
$1.05
14100746M6 Flat Washer Blk Zn ()
$1.58
15a002697Ki Limb Support Base, 5 x 8
$113.58
15b002698Ki Limb Support Base, 7 x 10
$144.67
15c002699Ki Limb Support Base, 9 x 10
$171.47
15d002700Ki Limb Support Base, 9 x 14
$192.89
15e002701Ki Limb Support Base, 11 x 10
$182.17
15f002702Ki Limb Support Base, 11x14
$225.05
16a002600Ki Limb Support Pad with Mesh Cover, 5 x 8
$72.87
16b002601Ki Limb Support Pad with Mesh Cover, 7 x 10
$72.87
16c002602Ki Limb Support Pad with Mesh Cover, 9 x 10
$82.52
16d002603Ki Limb Support Pad with Mesh Cover, 9 x 14
$85.73
16e002604Ki Limb Support Pad with Mesh Cover, 11 x 10
$101.81
16f002605Ki Limb Support Pad with Mesh Cover, 11 x 14
$94.30
16g002606Ki Limb Support Pad with Smooth Cover, 5 x 8
$72.87
16h002607Ki Limb Support Pad with Smooth Cover, 7 x 10
$82.52
16i002608Ki Limb Support Pad with Smooth Cover, 9 x 10
$85.73
16j002609Ki Limb Support Pad with Smooth Cover, 9 x 14
$100.74
16k002610Ki Limb Support Pad with Smooth Cover, 11 x 10
$94.30
16l002611Ki Limb Support Pad with Smooth Cover, 11 x 14
$107.16
17101835M6 Lock Washer Blk Zn ()
$0.53
15a, 16a502330Residual Limb Support Base and Pad with Mesh Cover 5 x 8
$186.47
15b, 16b502331Residual Limb Support Base and Pad with Mesh Cover 7 x 10
$217.53
15c, 16c502332Residual Limb Support Base and Pad with Mesh Cover 9 x 10
$253.98
15d, 16d502333Residual Limb Support Base and Pad with Mesh Cover 9 x 14
$278.63
15e, 16e502334Residual Limb Support Base and Pad with Mesh Cover 11 x 10
$283.98
15f, 16f502335Residual Limb Support Base and Pad with Mesh Cover 11 x 14
$319.34
15a, 16g502336Residual Limb Support Base and Pad with Smooth Cover 5 x 8
$186.47
15b, 16h502337Residual Limb Support Base and Pad with Smooth Cover 7 x 10
$227.19
15c, 16i502338Residual Limb Support Base and Pad with Smooth Cover 9 x 10
$257.20
15d, 16j502339Residual Limb Support Base and Pad with Smooth Cover 9 x 14
$293.63
15e, 16k502340Residual Limb Support Base and Pad with Smooth Cover 11 x 10
$276.49
15f, 16l502341Residual Limb Support Base and Pad with Smooth Cover 11 x 14
$332.21
