Catalyst 5
Name: Catalyst 5: Catalyst 5 Depth Adjustable Rear Frame
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

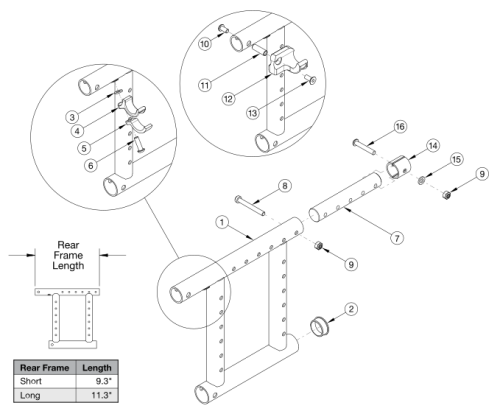

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 3, 4, 5, 6a | 501005 | Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each. Used with Aluminum and Titanium Cross Braces | Used with Standard Weight Capacity. This kit contains quantity of 1 each. Used with Aluminum and Titanium Cross Braces | $18.27 | EA | |
| 3, 4, 5, 6b | 114528 | Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity 1 each | Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity 1 each | $18.83 | EA | |
| 10, 11, 12a, 13 | 111569 | Seat Hook and Support Hardware Kit, Seating System, Right Side, Catalyst- This kit contains quantity of 1 each. Used with Open Seating/Seating System Cross Braces | This kit contains quantity of 1 each. Used with Open Seating/Seating System Cross Braces | $31.04 | EA | |
| 10, 11, 12b, 13 | 111570 | Seat Hook and Support Hardware Kit, Seating System, Left Side, Catalyst- This kit contains quantity of 1 each. Used with Open Seating/Seating System Cross Braces | This kit contains quantity of 1 each. Used with Open Seating/Seating System Cross Braces | $31.04 | EA | |
| 7, 9, 14, 15, 16 | 115765 | Depth Adjustable Extension with Hardware, Catalyst/Spark | $46.40 | EA | ||
| 1a, 2 | 101601_ _ _ | Frame Assembly, Catalyst Depth Adjustable Rear, Left, Short | N/A | EA | Please Call | |
| 1c, 2 | 101600_ _ _ | Frame Assembly, Catalyst Depth Adjustable Rear, Right, Short | N/A | EA | Please Call | |
| 1b, 2 | 101603_ _ _ | Frame Assembly, Catalyst Depth Adjustable Rear, Left, Long | N/A | EA | Please Call | |
| 1d, 2 | 101602_ _ _ | Frame Assembly, Catalyst Depth Adjustable Rear, Right, Long | N/A | EA | Please Call | |
| 2 | 100532 | Tube End Plug 1 1/8" | $2.76 | EA | ||
| 3 | 100831 | 1/2" Washer OD .040" Thick- Used with Aluminum and Titanium Cross Braces | Used with Aluminum and Titanium Cross Braces | $1.66 | EA | |
| 4 | 000003 | Seat Hook, Catalyst- Used with Aluminum and Titanium Cross Braces | Used with Aluminum and Titanium Cross Braces | $8.09 | EA | |
| 5 | 000004 | Seat Hook Support, Catalyst- Used with Aluminum and Titanium Cross Braces | Used with Aluminum and Titanium Cross Braces | $6.88 | EA | |
| 6a | 100668 | M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity and Aluminum or Titanium Cross Braces | Used with Standard Weight Capacity and Aluminum or Titanium Cross Braces | $1.66 | EA | |
| 6b | 101180 | M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity and Aluminum or Titanium Cross Braces | Used with Heavy Duty / 350 lbs Weight Capacity and Aluminum or Titanium Cross Braces | $2.21 | EA | |
| 7 | 000605 | Depth Adjustable Frame Extension Tube, Catalyst/Spark | $39.00 | EA | ||
| 8 | 101124 | M6 x 50 Low SHCS BLK ZC | $1.66 | EA | ||
| 9 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 10 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch- Used with Open Seating/Seating System Cross Braces | Used with Open Seating/Seating System Cross Braces | $1.66 | EA | |
| 11 | 000065 | M6 x 23.68 Threaded Barrel- Used with Open Seating/Seating System Cross Braces | Used with Open Seating/Seating System Cross Braces | $4.34 | EA | |
| 12a | 000960R | Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst- Used with Open Seating/Seating System Cross Braces | Used with Open Seating/Seating System Cross Braces | $22.84 | EA | |
| 12b | 000960L | Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst- Used with Open Seating/Seating System Cross Braces | Used with Open Seating/Seating System Cross Braces | $22.84 | EA | |
| 13 | 101594 | M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch- Used with Open Seating/Seating System Cross Braces | Used with Open Seating/Seating System Cross Braces | $2.21 | EA | |
| 14 | 114443 | Tube Spacer, Black, 1" OD x .083" x .80 LG- Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | $3.54 | EA | |
| 15 | 100746 | M6 Flat Washer Blk Zn- Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | $1.66 | EA | |
| 16 | 101811 | M6 x 35 BHCS Blk Zn- Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | Used with Stroller Handle Backpost and Height Adjustable Straight with Push Handle Backpost designs released February 8th, 2021 | $1.10 | EA |
