Catalyst 5
Name: Catalyst 5: Catalyst 5 Footplates - Aluminum Locking Multi-angle Adjustable Front Mount
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

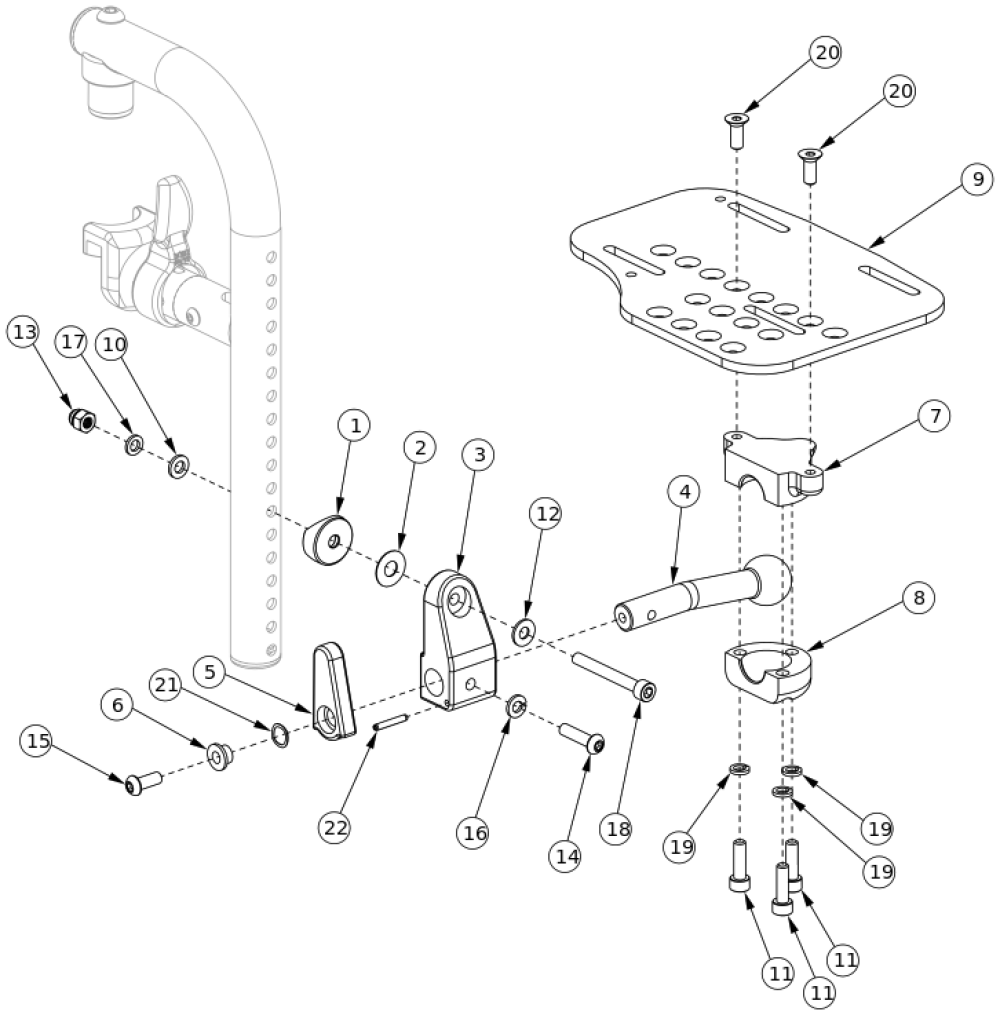

Part Picture
(Click on image to enlarge)
Sizes for footplates / assemblies are based on seat width.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2, 3a, 4 - 8, 10 - 22 | 107618 | Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, Right | $276.85 | EA | ||
| 1, 2, 3b, 4 - 8, 10 - 22 | 107619 | Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, Left | $276.85 | EA | ||
| 1, 2, 3a - 3b, 4 - 8, 10 - 22 | 107620 | Footplate Hardware Kit Aluminum Locking Multi-Angle Adjustable, PAIR | $639.39 | EA | ||
| 1, 2, 3a, 4 - 8, 9a, 10 - 22 | 107605 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, Right | $341.45 | EA | ||
| 1, 2, 3a, 4 - 8, 9c, 10 - 22 | 107606 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, Right | $341.45 | EA | ||
| 1, 2, 3a, 4 - 8, 9e, 10 - 22 | 107607 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, Right | $341.45 | EA | ||
| 1, 2, 3b, 4 - 8, 9b, 10 - 22 | 107610 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, Left | $341.45 | EA | ||
| 1, 2, 3b, 4 - 8, 9d, 10 - 22 | 107611 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, Left | $341.45 | EA | ||
| 1, 2, 3b, 4 - 8, 9f, 10 - 22 | 107612 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, Left | $341.45 | EA | ||
| 1, 2, 3a - 3b, 4 - 8, 9a - 9b, 10 - 22 | 107615 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 14-15" Wide, PAIR | $682.89 | EA | ||
| 1, 2, 3a - 3b, 4 - 8, 9c - 9d, 10 - 22 | 107616 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 16-17" Wide, PAIR | $682.89 | EA | ||
| 1, 2, 3a - 3b, 4 - 8, 9e - 9f, 10 - 22 | 107617 | Footplate Kit Aluminum Locking Multi-Angle Adjustable, 18-24" Wide, PAIR | $682.89 | EA | ||
| 1 | 000055 | Saddle 1" | $1.66 | EA | ||
| 2 | 000428 | Wear Washer | $2.76 | EA | ||
| 3a, 22 | 109294 | Multi-Angle Footrest Mount 1", with Spring Pin, Right | $55.69 | EA | ||
| 3b, 22 | 109295 | Multi-Angle Footrest Mount 1", with Spring Pin, Left | $55.69 | EA | ||
| 4 | 003820 | Ball Shaft 1" Multi-Angle | $91.04 | EA | ||
| 5 | 003821 | Latch, Footplate, Multi-Angle | $12.85 | EA | ||
| 6 | 003822 | Bushing, Latch, Multi-Angle | $3.21 | EA | ||
| 7 | 003823 | Clamp, Upper, Footplate, Multi-Angle | $37.49 | EA | ||
| 8 | 003824 | Clamp, Lower, Footplate, Multi-Angle | $37.49 | EA | ||
| 9a | 003829 | Footplate, Multi-Angle, 14-15W, Right | $64.60 | EA | ||
| 9b | 003830 | Footplate, Multi-Angle, 14-15W, Left | $64.60 | EA | ||
| 9c | 003831 | Footplate, Multi-Angle, 16-17W, Right | $64.60 | EA | ||
| 9d | 003832 | Footplate, Multi-Angle, 16-17W, Left | $64.60 | EA | ||
| 9e | 003833 | Footplate, Multi-Angle, 18-24W, Right | $64.60 | EA | ||
| 9f | 003834 | Footplate, Multi-Angle, 18-24W, Left | $64.60 | EA | ||
| 10 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 11 | 101180 | M6 x 20 SHCS BLK ZC | $2.21 | EA | ||
| 12 | 101455 | M6 Belleville Washer (.252 x .551 x .050) | $1.66 | EA | ||
| 13 | 101456 | M6 Ovl Top L/N ZC | $1.66 | EA | ||
| 14 | 101593 | M6 x 25 BTN SHCS BLKZC | $1.66 | EA | ||
| 15 | 101721 | M6 x 16 Btn SHCS w/ Patch | $2.21 | EA | ||
| 16 | 101835 | M6 Lock Washer Blk Zn | $0.56 | EA | ||
| 17 | 102072 | Washer Nylon .234 ID x .406 OD x .062 Thick | $0.56 | EA | ||
| 18 | 102473 | M6 X 50 CLS12.9 SHCS BLK ZC | $4.41 | EA | ||
| 19 | 102810 | M6 Lockwasher, Hi-Collar, ZC | $0.56 | EA | ||
| 20 | 102936 | M6 X 16 FHCS, Blk Zn | $1.10 | |||
| 21 | 103539 | Wave Spring, 3/8IDx1/2ODx.009T, SS | $12.85 | EA |
