Catalyst 5
Name: Catalyst 5: Catalyst 5 Anti-tip Receiver
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
For other hardware options, please reference the Catalyst 5 Axle Plate pages.
If retrofitting to universal axle plates and the chair was invoiced prior to November 14, 2018, new anti-tip receivers are required.
If retrofitting to a Reclining Rear Frame, Amputee Anti-Tip Spacers and Saddles are required.
Please see the Catalyst 5 Swing-In Anti-Tip page for Swing-In Anti-Tip replacements
Attachments:

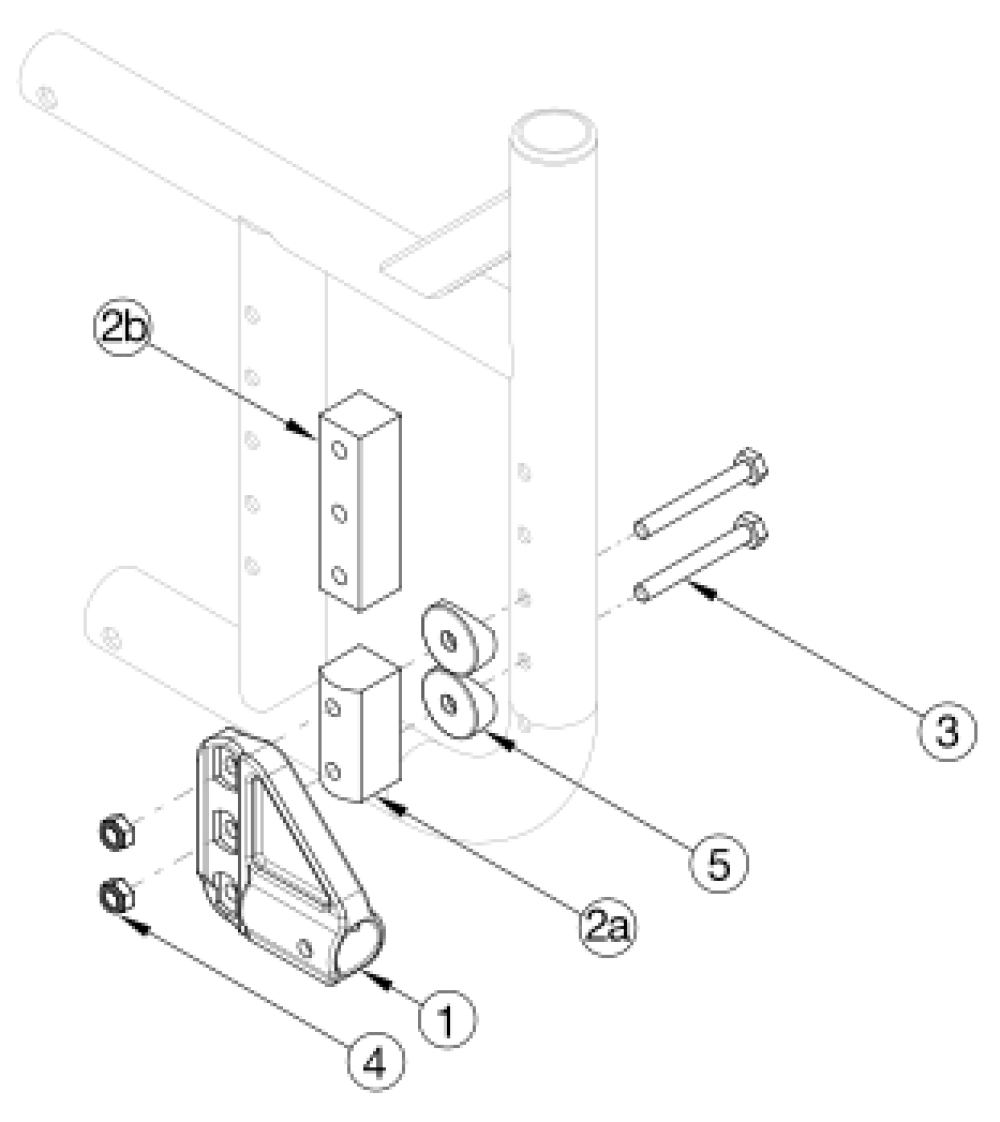

| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 3a, 4 | 123854 | Anti Tip Hardware with Universal Axle Plate |
$23.92
|
EA |
|
|
| 1, 2a, 3b, 4, 5a | 123855 | Anti Tip Hardware with Amputee Axle Plate, Standard Rear Frame, No Transit |
$88.06
|
EA |
|
|
| 1, 2a, 3b, 4, 5b | 123856 | Anti Tip Hardware with Amputee Axle Plate, Depth Adjustable / Reclining Rear Frame, No Transit |
$88.06
|
EA |
|
|
| 1, 2b, 3b, 4, 5a | 123857 | Anti Tip Hardware with Amputee Axle Plate, Standard Rear Frame, with Transit |
$70.11
|
EA |
|
|
| 1, 2b, 3b, 4, 5b | 123858 | Anti Tip Hardware with Amputee Axle Plate, Depth Adjustable / Reclining Rear Frame, with Transit |
$70.11
|
EA |
|
|
| 1 | 004539 | Anti Tip Receiver, Catalyst- Used with Universal Axle Plate or if chair has an invoice date after November 13, 2018. Replacement for 000046 | Used with Universal Axle Plate or if chair has an invoice date after November 13, 2018. Replacement for 000046 |
$16.72
|
EA |
|
| 2a | 002329 | Amputee Anti-Tip Spacer CAT- Used when Transit not present and Anti-Tips are present with Amputee Axle Plate | Used when Transit not present and Anti-Tips are present with Amputee Axle Plate |
$59.93
|
EA |
|
| 2b | 003341 | Amputee Anti-Tip Spacer w/ Transit CAT- Used when Transit and Anti-Tips are present with Amputee Axle Plate | Used when Transit and Anti-Tips are present with Amputee Axle Plate |
$41.98
|
EA |
|
| 3a | 101826 | M6 x 50 HHCS Blk Zn- Used when Amputee Anti-Tip Spacers are not present | Used when Amputee Anti-Tip Spacers are not present |
$2.41
|
EA |
|
| 3b | 100544 | M6 x 75 CLS 8.8 DIN931 HHCS ZC- Used with Amputee Anti-Tip Spacers | Used with Amputee Anti-Tip Spacers |
$1.81
|
EA |
|
| 4 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 5a | 000056 | Saddle 1 1/8"- Used with Amputee Anti-Tip Spacers and Standard Rear Frame | Used with Amputee Anti-Tip Spacers and Standard Rear Frame |
$1.81
|
|
|
| 5b | 000055 | Saddle 1"- Used with Amputee Anti-Tip Spacers and Depth Adjustable or Reclining Rear Frame | Used with Amputee Anti-Tip Spacers and Depth Adjustable or Reclining Rear Frame |
$1.81
|
EA |
|
