Name: Catalyst 5: Catalyst 5 Standard Caster Housing For Fixed Front Frame
Manufacturer: Ki Mobility

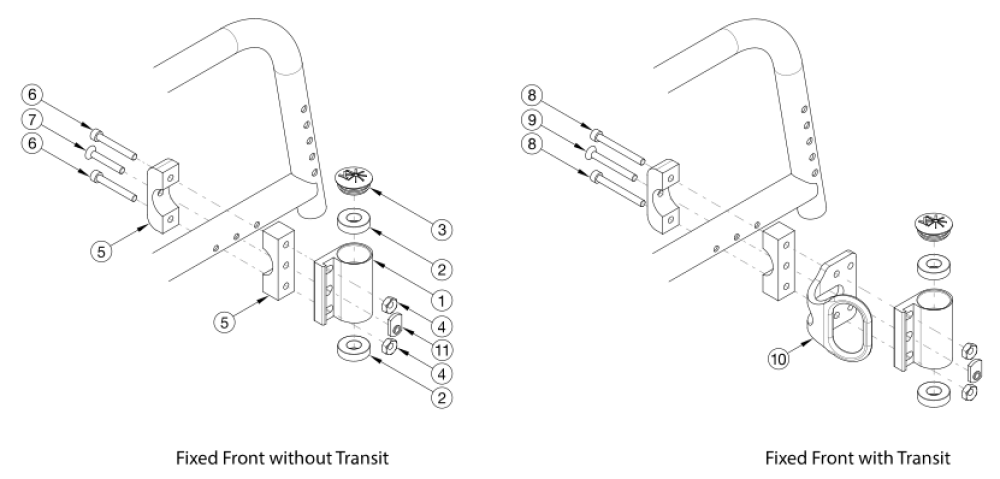

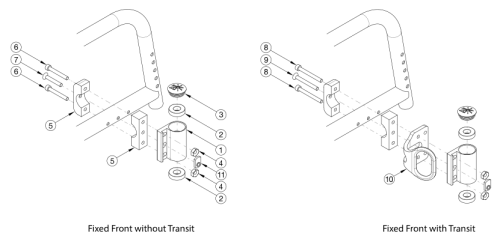

Catalyst 5 Standard Caster Housing For Fixed Front Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 2 - 7, 11 114444 Caster Housing Assembly, Fixed Front, Black, Left, Catalyst 5
$82.13
EA
1b, 2 - 7, 11 114444_ _ _ Color Anodized Caster Housing Assembly, Fixed Front, Left, Catalyst 5 N/A EA Please Call
1c, 2 - 7, 11 114445 Caster Housing Assembly, Fixed Front, Black, Right, Catalyst 5
$82.13
EA
1d, 2 - 7, 11 114445_ _ _ Color Anodized Caster Housing Assembly, Fixed Front, Right, Catalyst 5 N/A EA Please Call
1a, 1c, 2 - 7, 11 114446 Caster Housing Assembly, Fixed Front, Black, PAIR, Catalyst 5
$164.25
EA
1b, 1d, 2 - 7, 11 114446_ _ _ Color Anodized Caster Housing Assembly, Fixed Front, PAIR, Catalyst 5 N/A EA Please Call
1a, 2 - 5, 8, 9, 11 114447 Caster Housing Assembly, Fixed Front with Transit, Black, Left, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly.
$88.00
EA
1b, 2 - 5, 8, 9, 11 114447_ _ _ Color Anodized Caster Housing Assembly, Fixed Front with Transit, Left, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. N/A EA Please Call
1c, 2 - 5, 8, 9, 11 114448 Caster Housing Assembly, Fixed Front with Transit, Black, Right, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly.
$88.00
EA
1d, 2 - 5, 8, 9, 11 114448_ _ _ Color Anodized Caster Housing Assembly, Fixed Front with Transit, Right, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. N/A EA Please Call
1a, 1c, 2 - 5, 8, 9, 11 114449 Caster Housing Assembly, Fixed Front with Transit, Black, PAIR, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly.
$175.98
EA
1b, 1d, 2 - 5, 8, 9, 11 114449_ _ _ Color Anodized Caster Housing Assembly, Fixed Front with Transit, PAIR, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. N/A EA Please Call
1a, 2 001429 Caster Housing Fixed Front Left, Black, Catalyst
$42.16
EA
1b, 2 001429_ _ _ Color Anodized Caster Housing Fixed Front, Left, Catalyst
$104.37
EA
1c, 2 001430 Caster Housing Fixed Front Right, Black, Catalyst
$42.16
EA
1d, 2 001430_ _ _ Color Anodized Caster Housing Fixed Front, Right, Catalyst
$104.37
EA
2 100530 Bearing M28 x 1/2" 6001RS
$13.45
EA
3 102005 Ki Caster Housing Cap
$1.31
EA
4 100745 Eccentric nut (threaded)
$1.49
5 100528 Caster Housing Clamp
$26.27
EA
6 101472 M6 x 45 SHCS BLK ZC
$1.77
EA
7 101130 M6 x 55 FSHCS P/THD BLKZC
$2.36
EA
8 102473 M6 X 50 CLS12.9 SHCS BLK ZC
$4.70
EA
9 103068 M6 x 60mm FHCS Blk Zn
$2.36
EA
11 102092 M6 Weld Nut Offset
$3.53
EA
