Catalyst 5

Name: Catalyst 5: Pediatric Pro Elevating Leg Rest
Manufacturer: Ki Mobility

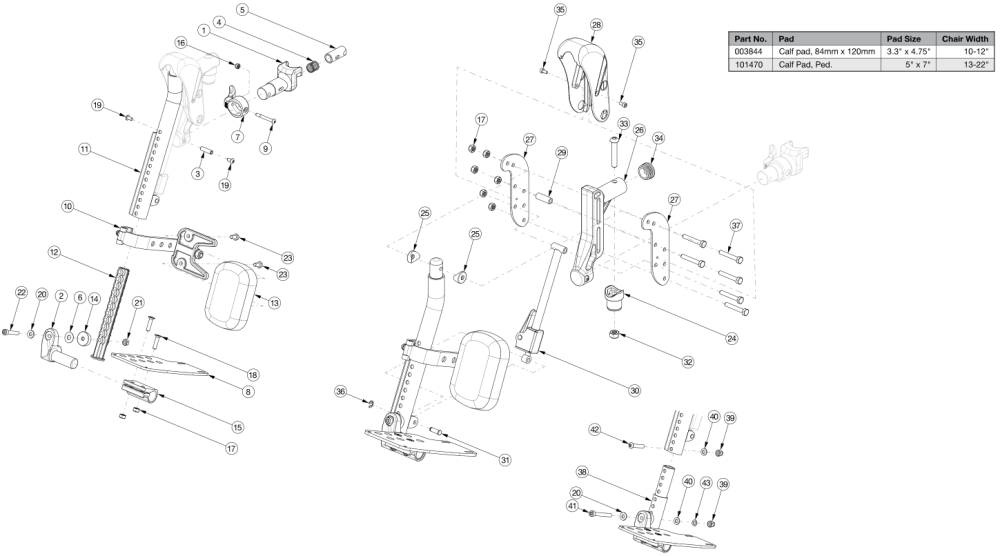

Pediatric Pro Elevating Leg Rest parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM	Buy
1, 2a - 2b, 3 - 6, 7a, 8a - 8b, 9 - 12, 14 - 43	107676	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, Classic Release, PAIR		$894.97	EA
1, 2a - 2b, 3 - 6, 7a, 8c - 8d, 9 - 12, 14 - 43	107677	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, Classic Release, PAIR		$884.59	EA
1, 2a - 2b, 3 - 6, 7a, 8e - 8f, 9 - 12, 14 - 43	107678	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, Classic Release, PAIR		$880.94	EA
1, 2a - 2b, 3 - 6, 7a, 8g - 8h, 9 - 12, 14 - 43	107679	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, Classic Release, PAIR		$880.94	EA
1, 2a - 2b, 3 - 6, 7a, 8i - 8j, 9 - 12, 14 - 43	107680	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, Classic Release, PAIR		$880.94	EA
1, 2a, 3 - 6, 7a, 8b, 9 - 12, 14 - 43	107666	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, Classic Release, Right		$447.48	EA
1, 2a, 3 - 6, 7a, 8d, 9 - 12, 14 - 43	107667	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, Classic Release, Right		$442.31	EA
1, 2a, 3 - 6, 7a, 8f, 9 - 12, 14 - 43	107668	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, Classic Release, Right		$440.49	EA
1, 2a, 3 - 6, 7a, 8h, 9 - 12, 14 - 43	107669	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, Classic Release, Right		$440.49	EA
1, 2a, 3 - 6, 7a, 8j, 9 - 12, 14 - 43	107670	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, Classic Release, Right		$440.49	EA
1, 2b, 3 - 6, 7a, 8a, 9 - 12, 14 - 43	107671	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, Classic Release, Left		$447.48	EA
1, 2b, 3 - 6, 7a, 8c, 9 - 12, 14 - 43	107672	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, Classic Release, Left		$442.31	EA
1, 2b, 3 - 6, 7a, 8e, 9 - 12, 14 - 43	107673	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, Classic Release, Left		$440.49	EA
1, 2b, 3 - 6, 7a, 8g, 9 - 12, 14 - 43	107674	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, Classic Release, Left		$440.49	EA
1, 2b, 3 - 6, 7a, 8i, 9 - 12, 14 - 43	107675	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, Classic Release, Left		$440.49	EA
1, 4, 5, 7a, 9, 16	003416	Classic Hanger Latch Assembly, Right		$71.39	EA
1, 4, 5, 7a, 9, 16	003417	Classic Hanger Latch Assembly, Left		$71.39	EA
1, 2a - 2b, 3 - 6, 7b, 8a - 8b, 9 - 12, 14 - 43	109188	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, 4-Way Out Release, PAIR		$894.97	EA
1, 2a - 2b, 3 - 6, 7b, 8c - 8d, 9 - 12, 14 - 43	109189	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, 4-Way Out Release, PAIR		$884.59	EA
1, 2a - 2b, 3 - 6, 7b, 8e - 8f, 9 - 12, 14 - 43	109190	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, 4-Way Out Release, PAIR		$880.94	EA
1, 2a - 2b, 3 - 6, 7b, 8g - 8h, 9 - 12, 14 - 43	109191	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, 4-Way Out Release, PAIR		$880.94	EA
1, 2a - 2b, 3 - 6, 7b, 8i - 8j, 9 - 12, 14 - 43	109192	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, 4-Way Out Release, PAIR		$880.94	EA
1, 2a, 3 - 6, 7b, 8b, 9 - 12, 14 - 43	109178	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, 4-Way Out Release, Right		$447.48	EA
1, 2a, 3 - 6, 7b, 8d, 9 - 12, 14 - 43	109179	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, 4-Way Out Release, Right		$442.31	EA
1, 2a, 3 - 6, 7b, 8f, 9 - 12, 14 - 43	109180	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, 4-Way Out Release, Right		$440.49	EA
1, 2a, 3 - 6, 7b, 8h, 9 - 12, 14 - 43	109181	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, 4-Way Out Release, Right		$440.49	EA
1, 2a, 3 - 6, 7b, 8j, 9 - 12, 14 - 43	109182	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, 4-Way Out Release, Right		$440.49	EA
1, 2b, 3 - 6, 7b, 8a, 9 - 12, 14 - 43	109183	Peds PRO ELR Assembly 10-11", Angle Adj Footplate, 4-Way Out Release, Left		$447.48	EA
1, 2b, 3 - 6, 7b, 8c, 9 - 12, 14 - 43	109184	Peds PRO ELR Assembly 12-13", Angle Adj Footplate, 4-Way Out Release, Left		$442.31	EA
1, 2b, 3 - 6, 7b, 8e, 9 - 12, 14 - 43	109185	Peds PRO ELR Assembly 14-15", Angle Adj Footplate, 4-Way Out Release, Left		$440.49	EA
1, 2b, 3 - 6, 7b, 8g, 9 - 12, 14 - 43	109186	Peds PRO ELR Assembly 16-17", Angle Adj Footplate, 4-Way Out Release, Left		$440.49	EA
1, 2b, 3 - 6, 7b, 8i, 9 - 12, 14 - 43	109187	Peds PRO ELR Assembly 18-24", Angle Adj Footplate, 4-Way Out Release, Left		$440.49	EA
1, 4, 5, 7b, 9, 16	003642	Assembled 4-Way Out Hanger Release, Right		$41.16	EA
1, 4, 5, 7b, 9, 16	003642INST	Assembled 4-Way Out Hanger Release, Right with Instruction		$41.16	EA
1, 4, 5, 7b, 9, 16	003643	Assembled 4-Way Out Hanger Release, Left		$41.16	EA
1, 4, 5, 7b, 9, 16	003643INST	Assembled 4-Way Out Hanger Release, Left with Instruction		$41.16	EA
11, 17, 24 - 37	003853	Hanger Assembly, ELR, Front Mount, Right		$111.89	EA
11, 17, 24 - 37	003854	Hanger Assembly, ELR, Front Mount, Left		$111.89	EA
1	000031	Hanger Bracket		N/A	EA	Please Call
2a	000048	Footplate Angle Adj Casting 1" Right		$22.50	EA
2b	000050	Footplate Angle Adj Casting 1" Left		$22.50	EA
3	000073	M5 x 24 Threaded Barrel		$4.23	EA
4	000119	Hanger Spring		$3.42	EA
5	000352	Hanger Release Pin		N/A	EA	Please Call
6	000428	Wear Washer		$2.94	EA
7a	001158	Lever Swing Away Short		$8.19	EA
7b	003228	Hanger Latch, 4-Way, Lever		$3.53	EA
8a	001304	Footplate Angle Adjustable 10-11" Wide CAT/TILT Left		$77.94	EA
8b	001305	Footplate Angle Adjustable 10-11" Wide CAT/TILT Right		$77.94	EA
8c	001306	Footplate Angle Adjustable 12-13" Wide CAT/TILT Left		$72.75	EA
8d	001307	Footplate Angle Adjustable 12-13" Wide CAT/TILT Right		$72.75	EA
8e	000105	Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right)		$70.93	EA
8f	000106	Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left)		$70.93	EA
8g	000107	Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right)		$70.93	EA
8h	000108	Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left)		$70.93	EA
8i	000109	Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right)		$70.93	EA
8j	000110	Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left)		$70.93	EA
9	001374	M5 x 40 BHCS P/THD BLKZC		$2.40	EA
10	003344	Pro ELR Calf Pad Bracket Assembly		$38.80	EA
11a	003839	ELR Tube Weldment, Front Mount, Right		$44.69	EA
11b	003840	ELR Tube Weldment, Front Mount, Left		$44.69	EA
12	003843	Insert, Footrest Tube		$6.85	EA
13a	003844	Calf Pad, 84mm x 120mm- Used on 10" - 12" wide chairs	Used on 10" - 12" wide chairs	$19.42	EA
13b	101470	Pediatric Calf Pad- Used on 13" - 22" wide chairs	Used on 13" - 22" wide chairs	$29.40	EA
14	003845	Saddle 1" Rounded		$1.72	EA
15	100502	Angle Adj Footplate Clamp 2"		$14.81	EA
16	100657	M5 Nylock Nut Blk Zn		$0.60	EA
17	100658	M6 Nylock Nut Blk Zn		$1.17	EA
18	100662	M6 x 25 FSHCS BLK ZC		$1.77
19	100669	M5 x 10 BTN SHCS BLKZC w/Patch		$1.77	EA
20	101455	M6 Belleville Washer (.252 x .551 x .050)		$1.77	EA
21	120030	M6 Top Lock Nut		$1.17	EA
22	101810	M6 x 35 SHCS BLK ZC		$1.17	EA
23	101823	M6 x 20 HHCS Blk Zn		$1.17	EA
24	000032	Footrest Hanger Pivot Saddle		$5.88	EA
25	000053	Saddle 3/4"		$1.77
27	003121	Side Plate, Pro ELR		$14.12	EA
28	003122	Cover, Pro ELR		$9.40	EA
29	003123	Spacer, .375OD x .242ID x 1.030LG		$3.53	EA
30	115767	Lock Rod Assembly, Pro ELR w/ Instructions		$54.10	EA
31	003131	Clevis Pin, 6mm x .64L		$3.53	EA
32	100659	M8 Nylock Nut Blk Zn		$1.17	EA
33	100673	M8 x 45 BTN SHCS BLKZC		$1.77	EA
34	100804	Tube End Plug 1"		$1.77	EA
35	102800	M4 x 8mm SHCS Blk Zn		$0.60	EA
36	102822	E-Ring, M6, YZ		$0.60	EA
37	102940	M6 x 38 HHCS, 8mm THD, BLK ZN		$2.36	EA
38	000164	Hanger Extension 3" (Front Mount)		$68.48	EA
39	100558	M6 NYL INS Domed Cap L/N ZC		$1.17	EA
40	100746	M6 Flat Washer Blk Zn		$1.77	EA
41	101124	M6 x 50 Low SHCS BLK ZC		$1.77	EA
42	101811	M6 x 35 BHCS Blk Zn		$1.17	EA
43	102072	Washer Nylon .234 ID x .406 OD x .062 Thick		$0.60	EA
