Catalyst 5

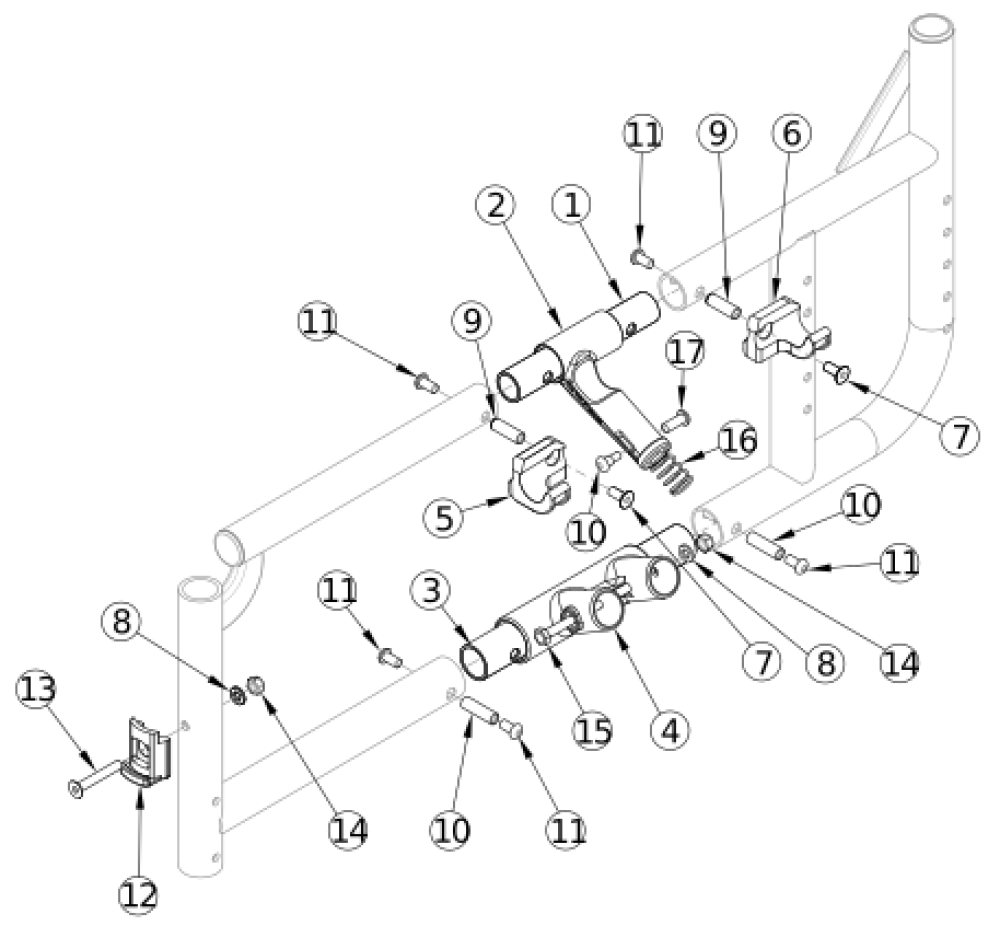

Name: Catalyst 5: Catalyst 5 Side Frame Assembly - Open Seating (seating System)
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Upper Pivot Assemblies are based on seat width
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2b, 16 - 18 | 500024 | Upper Pivot Assembly 14" Width- This kit also contains the 14" slider link (not pictured) | This kit also contains the 14" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500025 | Upper Pivot Assembly 15" Width- This kit also contains the 15" slider link (not pictured) | This kit also contains the 15" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500026 | Upper Pivot Assembly 16" Width- This kit also contains the 16" slider link (not pictured) | This kit also contains the 16" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500027 | Upper Pivot Assembly 17" Width- This kit also contains the 17" slider link (not pictured) | This kit also contains the 17" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500028 | Upper Pivot Assembly 18" Width- This kit also contains the 18" slider link (not pictured) | This kit also contains the 18" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500029 | Upper Pivot Assembly 19" Width- This kit also contains the 19" slider link (not pictured) | This kit also contains the 19" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 500030 | Upper Pivot Assembly 20" Width- This kit also contains the 20" slider link (not pictured) | This kit also contains the 20" slider link (not pictured) |
$50.11
|
EA |
|
| 2a, 16 - 18 | 501479 | Upper Pivot Assembly 21/22" Width- This kit also contains the 21/22" slider link (not pictured) | This kit also contains the 21/22" slider link (not pictured) |
$50.11
|
EA |
|
| 1 | 000011 | Frame Connector Upper CAT |
$5.12
|
EA |
|
|
| 3 | 000009 | Frame Connector Lower CAT |
$5.12
|
EA |
|
|
| 4a | 000001 | Lower Frame Pivot CAT- Used with round style cross braces effective prior to 6/15/16 | Used with round style cross braces effective prior to 6/15/16 |
$31.02
|
EA |
|
| 4b | 002806 | Lower Frame Pivot CAT- Used with oval style cross braces effective 6/15/16 | Used with oval style cross braces effective 6/15/16 |
$11.77
|
EA |
|
| 5 | 000960R | Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst |
$24.35
|
EA |
|
|
| 6 | 000960L | Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst |
$24.35
|
EA |
|
|
| 7 | 101594 | M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch |
$2.36
|
EA |
|
|
| 8 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 9 | 000065 | M6 x 23.68 Threaded Barrel |
$4.63
|
EA |
|
|
| 10 | 000066 | M6 x 27 Threaded Barrel |
$4.99
|
|
||
| 11 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch |
$1.77
|
EA |
|
