Name: Catalyst 5: Catalyst Super Low Swing Away Front Frame
Manufacturer: Ki Mobility

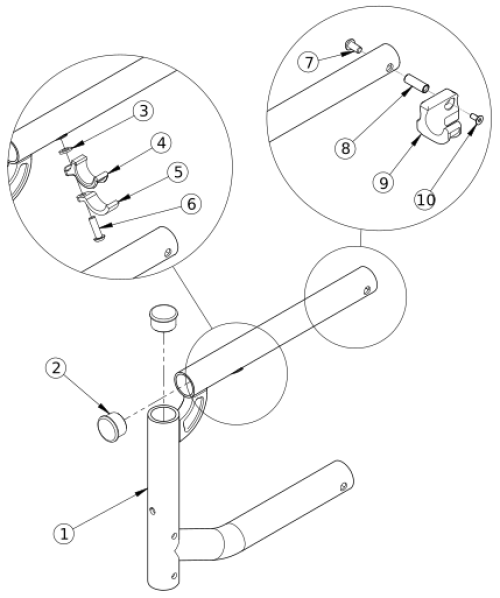

Catalyst Super Low Swing Away Front Frame parts diagram
(Click on image to enlarge)

Color CodesThis front frame design effective January 1st, 2021. 16" and 18" seat depths use the same front frames. 17" and 19" seat depths use the same front frames. Frame assemblies are based on Seat Depth. If switching to a new Seat Depth, new Height Adjustable T-Arms or Height Adjustable Flip Back T-Arms may be needed. If chair has Flip Back or is an AADL chair, select a frame assembly with the Flip Back Arm Modification. If retrofitting from a Fixed Front Frame, new caster housings with attaching hardware and latch blocks with hardware are required. If quoting a Right Front Frame for Australia or New Zealand, 122921 is required when transit is not present.
Pos. Part # Description Price UOM Buy
3, 4, 5, 6 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each
$19.87
EA
7, 8, 9a, 10 111569 Seat Hook and Support Hardware Kit Seating System Right Front Frame / Left Rear Frame Catalyst- This kit contains quantity of 1 each
$33.75
EA
7, 8, 9b, 10 111570 Seat Hook and Support Hardware Kit, Seating System Left Front Frame / Right Rear Frame Catalyst- This kit contains quantity of 1 each
$33.75
EA
1a, 2 100398_ _ _ Frame Assm Cat Front Low Left 14 _ _ _ N/A EA Please Call
1b, 2 100400_ _ _ Frame Assm Cat Front Low Left 15 _ _ _ N/A EA Please Call
1c, 2 100402_ _ _ Frame Assm Cat Front Low Left 16 _ _ _ N/A EA Please Call
1d, 2 100404_ _ _ Frame Assm Cat Front Low Left 17 _ _ _ N/A EA Please Call
1e, 2 501609_ _ _ Frame Assm Cat Front Low Left 18 _ _ _ N/A EA Please Call
1f, 2 501610_ _ _ Frame Assm Cat Front Low Left 19 _ _ _ N/A EA Please Call
1g, 2 100406_ _ _ Frame Assm Cat Front Low Left 20 _ _ _ N/A EA Please Call
1h, 2 100397_ _ _ Frame Assm Cat Front Low Right 14 _ _ _ N/A EA Please Call
1i, 2 100399_ _ _ Frame Assm Cat Front Low Right 15 _ _ _ N/A EA Please Call
1j, 2 100401_ _ _ Frame Assm Cat Front Low Right 16 _ _ _ N/A EA Please Call
1k, 2 100403_ _ _ Frame Assm Cat Front Low Right 17 _ _ _ N/A EA Please Call
1l, 2 501611_ _ _ Frame Assm Cat Front Low Right 18 _ _ _ N/A EA Please Call
1m, 2 501612_ _ _ Frame Assm Cat Front Low Right 19 _ _ _ N/A EA Please Call
1n, 2 100405_ _ _ Frame Assm Cat Front Low Right 20 _ _ _ N/A EA Please Call
1c, 2 114338_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Left 16 _ _ _ N/A EA Please Call
1d, 2 114340_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Left 17 _ _ _ N/A EA Please Call
1e, 2 114347_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Left 18 _ _ _ N/A EA Please Call
1f, 2 114348_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Left 19 _ _ _ N/A EA Please Call
1g, 2 114342_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Left 20 _ _ _ N/A EA Please Call
1j, 2 114337_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Right 16 _ _ _ N/A EA Please Call
1k, 2 114339_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Right 17 _ _ _ N/A EA Please Call
1l, 2 114349_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Right 18 _ _ _ N/A EA Please Call
1m, 2 114350_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Right 19 _ _ _ N/A EA Please Call
1n, 2 114341_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Low Right 20 _ _ _ N/A EA Please Call
2 100804 Tube End Plug 1"- Quantity 2 when omitting hangers
$1.81
EA
3 100831 1/2" Washer OD .040" Thick
$1.81
EA
4 000003 Seat Hook, Catalyst
$8.79
EA
5 000004 Seat Hook Support, Catalyst
$7.49
EA
6 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.81
EA
7 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.81
EA
8 000065 M6 x 23.68 Threaded Barrel
$4.72
EA
9a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.84
EA
9b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.84
EA
10 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.41
EA
11 101819 M6 x 40 FHCS Blk Zn
$1.19
EA
12 000336 Latch Block
$42.84
EA
13 100746 M6 Flat Washer Blk Zn
$1.81
EA
14 100658 M6 Nylock Nut Blk Zn
$1.19
EA
122921 Not AS/NZS 3696.19 Compliant On-Chair Label with Instruction N/A EA Please Call
