Catalyst 5
Name: Catalyst 5: Catalyst Reclining Backrest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

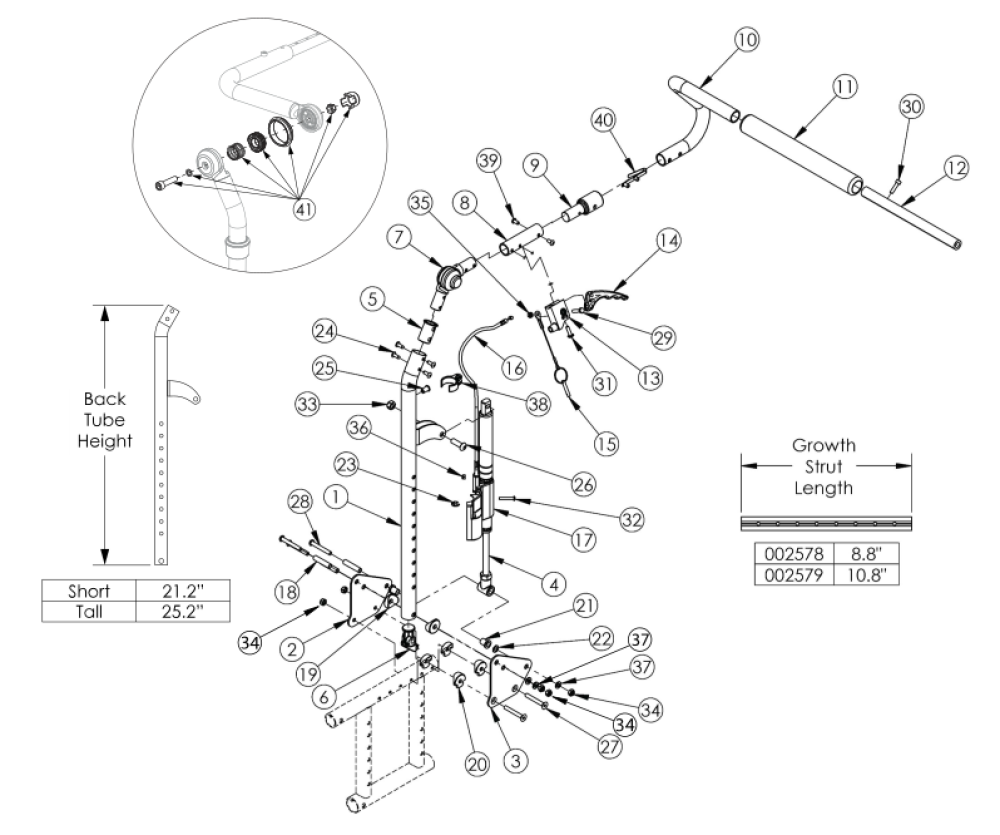

Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | Buy |
|---|---|---|---|---|---|
| 1a, 5, 7, 8b, 9, 10a, 11, 24, 25, 39, 40 | 503327 | Recline Back Tube Subassembly, Short 22", Right, Catalyst | $139.44 | ||
| 1a, 5, 7, 8a, 9, 10b, 11, 24, 25, 39, 40 | 503328 | Recline Back Tube Subassembly, Short 22", Left, Catalyst | $139.44 | ||
| 1b, 5, 7, 8b, 9, 10a, 11, 24, 25, 39, 40 | 503329 | Recline Back Tube Subassembly, Tall 26", Right, Catalyst | $141.96 | ||
| 1b, 5, 7, 8a, 9, 10b, 11, 24, 25, 39, 40 | 503330 | Recline Back Tube Subassembly, Tall 26", Left, Catalyst | $141.96 | ||
| 2 | 003217 | Backplate, Catalyst Recline, Outside | $27.40 | ||
| 3a | 003218 | Backplate, Catalyst Recline, Inside Left | $33.17 | ||
| 3b | 003219 | Backplate, Catalyst Recline, Inside Right | $33.17 | ||
| 4a | 001264 | Gas Spring Lock 92mm 20kg, Left (Standard Weight Capacity) | $149.21 | ||
| 4b | 001265 | Gas Spring Lock 92mm 20kg, Right (Standard Weight Capacity) | $149.21 | ||
| 4c | 001375 | Gas Spring Lock 92mm 40kg, Left (Heavy Duty) | $149.21 | ||
| 4d | 001376 | Gas Spring Lock 92mm 40kg, Right (Heavy Duty) | $149.21 | ||
| 6 | 001267 | Plug, Back Tube, Lower, Recline | $2.16 | ||
| 9 | 003222 | Recline Stroller Handle Adaptor | $15.57 | ||
| 12a | 002578 | Growth Strut, Stroller, 10-20- Used on chair widths 14 - 17 | Used on chair widths 14 - 17 | $25.22 | |
| 12b | 002579 | Growth Strut, Stroller, 18-24- Used on chair widths 18 - 22 | Used on chair widths 18 - 22 | $27.59 | |
| 13 | 003638 | Trigger Mount, No Lockout | $3.09 | ||
| 14 | 001123 | Trigger Horizontal | $7.71 | ||
| 15 | 001124 | Pin with Lanyard | $18.53 | ||
| 16a | 001268 | Cable, Recline, Short | $91.13 | ||
| 16b | 001269 | Cable, Recline, Long | $92.59 | ||
| 17a | 001298 | Cover, Gas Spring, Left | $3.89 | ||
| 17b | 001299 | Cover, Gas Spring, Right | $3.89 | ||
| 18 | 003223 | Recline Backplate Stop Pin () | $2.58 | ||
| 19 | 001271 | 1" Saddle, .323 Hole () | $1.59 | ||
| 20 | 000612 | 1" Half Saddle Washer () | $1.88 | ||
| 21 | 102081 | Bushing Flange .319 IDx.394 OD () | $0.55 | ||
| 22 | 101861 | Nylon Washer 5/16 x 1/2 x .03 () | $0.52 | ||
| 23 | 101076 | 1/4" E Ring | $1.55 | ||
| 26 | 101814 | M8 x 25 BHCS Blk Zn | $1.03 | ||
| 27 | 101592 | M6 x 45 CLS10.9 DIN7991 FSHCS BLKZC () | $2.58 | ||
| 28 | 100670 | M6 x 45 BTN SHCS BLK ZC () | $1.55 | ||
| 29 | 101820 | M5 x 22 HHCS Blk Zn | $5.67 | ||
| 30 | 101843 | M5 x 20 SHCS Blk Zn | $0.52 | ||
| 31 | 100734 | M5 x 16 DIN7985 PHMS ZC | $1.55 | ||
| 32 | 102328 | M4 x 25 Pan Head Phil Blk Zn | $1.03 | ||
| 33 | 100659 | M8 Nylock Nut Blk Zn | $1.03 | ||
| 34 | 100658 | M6 Nylock Nut Blk Zn () | $1.03 | ||
| 35 | 100657 | M5 Nylock Nut Blk Zn | $0.52 | ||
| 36 | 102329 | M4 Nylock Nut Blk Zn | $1.03 | ||
| 37 | 100746 | M6 Flat Washer Blk Zn () | $1.55 | ||
| 38 | 001117 | Cable Clip 1" | $3.75 | ||
| 39 | 100669 | M5 x 10 BTN SHCS BLKZC w/Patch () | $1.55 | ||
| 40 | 100533 | Detent Button | $3.52 | ||
| 10a, 11 | 501090 | Stroller Handle w/ Foam, Right | $50.17 | ||
| 10b, 11 | 501091 | Stroller Handle w/ Foam, Left | $50.17 | ||
| 9, 10a, 10b, 11, 12a, 30, 39, 40 | 503331 | Recline Removable Stroller Handle Assembly 14 - 17W Catalyst | $119.11 | ||
| 9, 10a, 10b, 11, 12b, 30, 39, 40 | 503332 | Recline Removable Stroller Handle Assembly 18 - 22W Catalyst | $119.11 | ||
| 1a, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16a, 17a, 17b, 18 - 40 | 503333 | Recline Back Kit, Short Height, 14-17" Width, Standard Gas Spring PAIR, Catalyst | $1,127.85 | ||
| 1a, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16a, 17a, 17b, 18 - 40 | 503334 | Recline Back Kit, Short Height, 18-22" Width, Standard Gas Spring PAIR, Catalyst | $1,127.85 | ||
| 1b, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16b, 17a, 17b, 18 - 40 | 503335 | Recline Back Kit, Tall Height, 14-17" Width, Standard Gas Spring PAIR, Catalyst | $1,127.85 | ||
| 1b, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16b, 17a, 17b, 18 - 40 | 503336 | Recline Back Kit, Tall Height, 18-22" Width, Standard Gas Spring PAIR, Catalyst | $1,127.85 | ||
| 1a, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16a, 17a, 17b, 18 - 40 | 503337 | Recline Back Kit, Short Height, 14-17" Width, Heavy Duty Gas Spring, Catalyst | $1,127.85 | ||
| 1a, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16a, 17a, 17b, 18 - 40 | 503338 | Recline Back Kit, Short Height, 18-22" Width, Heavy Duty Gas Spring, Catalyst | $1,127.85 | ||
| 1b, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16b, 17a, 17b, 18 - 40 | 503339 | Recline Back Kit, Tall Height, 14-17" Width, Heavy Duty Gas Spring, Catalyst | $1,127.85 | ||
| 1b, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16b, 17a, 17b, 18 - 40 | 503340 | Recline Back Kit, Tall Height, 18-22" Width, Heavy Duty Gas Spring, Catalyst | $1,127.85 |
