Catalyst 5

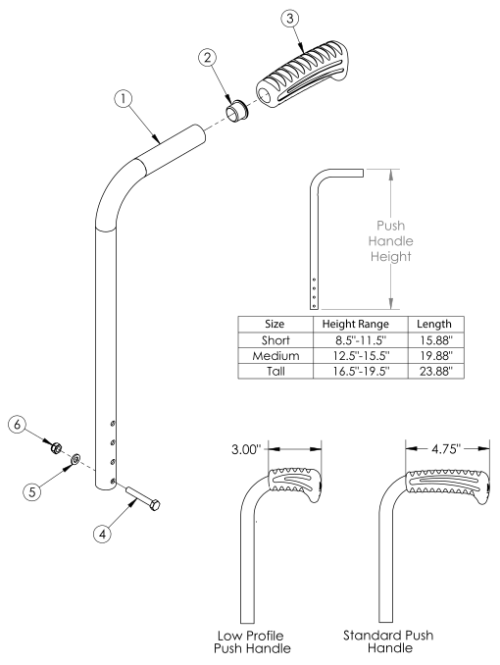

Name: Catalyst 5: Catalyst Straight Backrest With Push Handle
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Low Profile Push Handles are not available with Heavy Duty Option or Drum Brake
If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
If Anti-Rollback is present, see Back Tubes for Anti-Rollback System
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2, 3a | 100715 | Back Post Assembly Short Straight with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present |
$82.90
|
EA |
|
| 1b, 2, 3a | 100716 | Back Post Assembly Medium Straight with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present |
$82.90
|
EA |
|
| 1c, 2, 3a | 100717 | Back Post Assembly Tall Straight with Standard Push Handle- Used if drum brake is not present | Used if drum brake is not present |
$82.90
|
EA |
|
| 1d, 2, 3a | 113299 | Backtube Straight w/ Push Handle Short with Backcane Extension Catalyst- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page |
$59.09
|
EA |
|
| 1e, 2, 3a | 113300 | Backtube Straight w/ Push Handle Medium with Backcane Extension, Catalyst- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page |
$59.09
|
EA |
|
| 1f, 2, 3a | 113301 | Backtube Straight w/ Push Handle Tall with Backcane Extension, Catalyst- Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page | Used if drum brake is present. To view the backcane extension included in this kit, see the Catalyst 5 or Catalyst 5VX Drum Brake page |
$59.09
|
EA |
|
| 1a, 2, 3b | 002752 | Back Post Assembly Short Straight with Low Profile Push Handle |
$82.90
|
EA |
|
|
| 1b, 2, 3b | 002753 | Back Post Assembly Medium Straight with Low Profile Push Handle |
$82.90
|
EA |
|
|
| 1c, 2, 3b | 002754 | Back Post Assembly Tall Straight with Low Profile Push Handle |
$82.90
|
EA |
|
|
| 2 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
|
| 3a | 109433 | Ergo Push Handle Grip 7/8" Standard with Instruction |
$7.65
|
EA |
|
|
| 3b | 109431 | Ergo Push Handle Grip 7/8" Low Profile with Instruction |
$7.92
|
EA |
|
|
| 4 | 100681 | M6 x 40 CLS8.8 DIN931 HHCS ZC |
$1.81
|
EA |
|
|
| 5 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 6 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
