Name: Catalyst 5: Catalyst 70 Degree Fixed Front Frame
Manufacturer: Ki Mobility

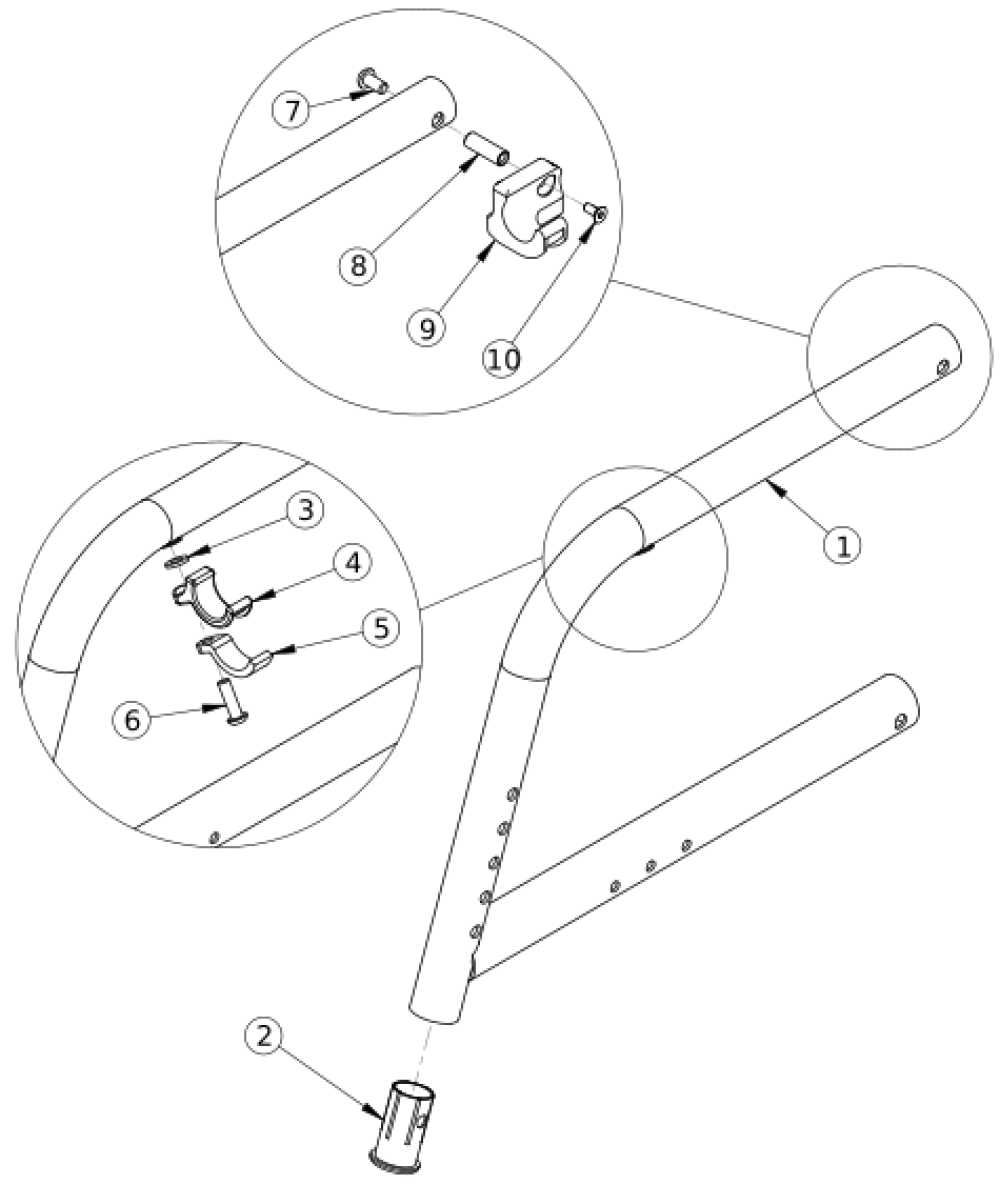

Catalyst 70 Degree Fixed Front Frame parts diagram
(Click on image to enlarge)

Color CodesFrame assemblies are based on Seat Depth. If switching to a new Seat Depth, new Height Adjustable T-Arms or Height Adjustable Flip Back T-Arms may be needed. 16" and 18" seat depths use the same front frames. 17" and 19" seat depths use the same front frames. If chair has Flip Back or the discontinued Height Adjustable Flip Back armrests, select a frame assembly with the Flip Back Arm Modification. This modification does not apply to Height Adjustable Flip Back T-Arms. If retrofitting from a Swing Away or Super Low Front Frame, new caster housings and attaching hardware are required. If quoting a Right Front Frame for Australia or New Zealand, 122921 is required when transit is not present.
Pos. Part # Description Price UOM Buy
3, 4, 5, 6a 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each
$19.87
EA
3, 4, 5, 6b 114528 Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$20.47
EA
7, 8, 9a, 10 111569 Seat Hook and Support Hardware Kit Seating System Right Front Frame / Left Rear Frame Catalyst- This kit contains quantity of 1 each
$33.75
EA
7, 8, 9b, 10 111570 Seat Hook and Support Hardware Kit, Seating System Left Front Frame / Right Rear Frame Catalyst- This kit contains quantity of 1 each
$33.75
EA
1a, 2 100138_ _ _ Frame Assm Cat Front Fixed 70 Left 14 _ _ _ N/A EA Please Call
1b, 2 100139_ _ _ Frame Assm Cat Front Fixed 70 Left 15 _ _ _ N/A EA Please Call
1c, 2 100140_ _ _ Frame Assm Cat Front Fixed 70 Left 16 _ _ _ N/A EA Please Call
1d, 2 100141_ _ _ Frame Assm Cat Front Fixed 70 Left 17 _ _ _ N/A EA Please Call
1e, 2 501613_ _ _ Frame Assm Cat Front Fixed 70 Left 18 _ _ _ N/A EA Please Call
1f, 2 501614_ _ _ Frame Assm Cat Front Fixed 70 Left 19 _ _ _ N/A EA Please Call
1g, 2 100142_ _ _ Frame Assm Cat Front Fixed 70 Left 20 _ _ _ N/A EA Please Call
1h, 2 100175_ _ _ Frame Assm Cat Front Fixed 70 Right 14 _ _ _ N/A EA Please Call
1i, 2 100176_ _ _ Frame Assm Cat Front Fixed 70 Right 15 _ _ _ N/A EA Please Call
1j, 2 100177_ _ _ Frame Assm Cat Front Fixed 70 Right 16 _ _ _ N/A EA Please Call
1k, 2 100178_ _ _ Frame Assm Cat Front Fixed 70 Right 17 _ _ _ N/A EA Please Call
1l, 2 501615_ _ _ Frame Assm Cat Front Fixed 70 Right 18 _ _ _ N/A EA Please Call
1m, 2 501616_ _ _ Frame Assm Cat Front Fixed 70 Right 19 _ _ _ N/A EA Please Call
1n, 2 100179_ _ _ Frame Assm Cat Front Fixed 70 Right 20 _ _ _ N/A EA Please Call
1c, 2 114310_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 16 _ _ _ N/A EA Please Call
1d, 2 114311_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 17 _ _ _ N/A EA Please Call
1e, 2 114351_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 18 _ _ _ N/A EA Please Call
1f, 2 114352_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 19 _ _ _ N/A EA Please Call
1g, 2 114312_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 20 _ _ _ N/A EA Please Call
1j, 2 114320_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 16 _ _ _ N/A EA Please Call
1k, 2 114321_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 17 _ _ _ N/A EA Please Call
1l, 2 114353_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 18 _ _ _ N/A EA Please Call
1m, 2 114354_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 19 _ _ _ N/A EA Please Call
1n, 2 114322_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 20 _ _ _ N/A EA Please Call
2 000034 Sleeve 3/4" x 1 1/2"
$4.18
EA
3 100831 1/2" Washer OD .040" Thick
$1.81
EA
4 000003 Seat Hook, Catalyst
$8.79
EA
5 000004 Seat Hook Support, Catalyst
$7.49
EA
6a 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.81
EA
7 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.81
EA
8 000065 M6 x 23.68 Threaded Barrel
$4.72
EA
9a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.84
EA
9b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.84
EA
10 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.41
EA
122921 Not AS/NZS 3696.19 Compliant On-Chair Label with Instruction N/A EA Please Call
