Name: Catalyst 5: Catalyst 5 Reclining Rear Frame
Manufacturer: Ki Mobility

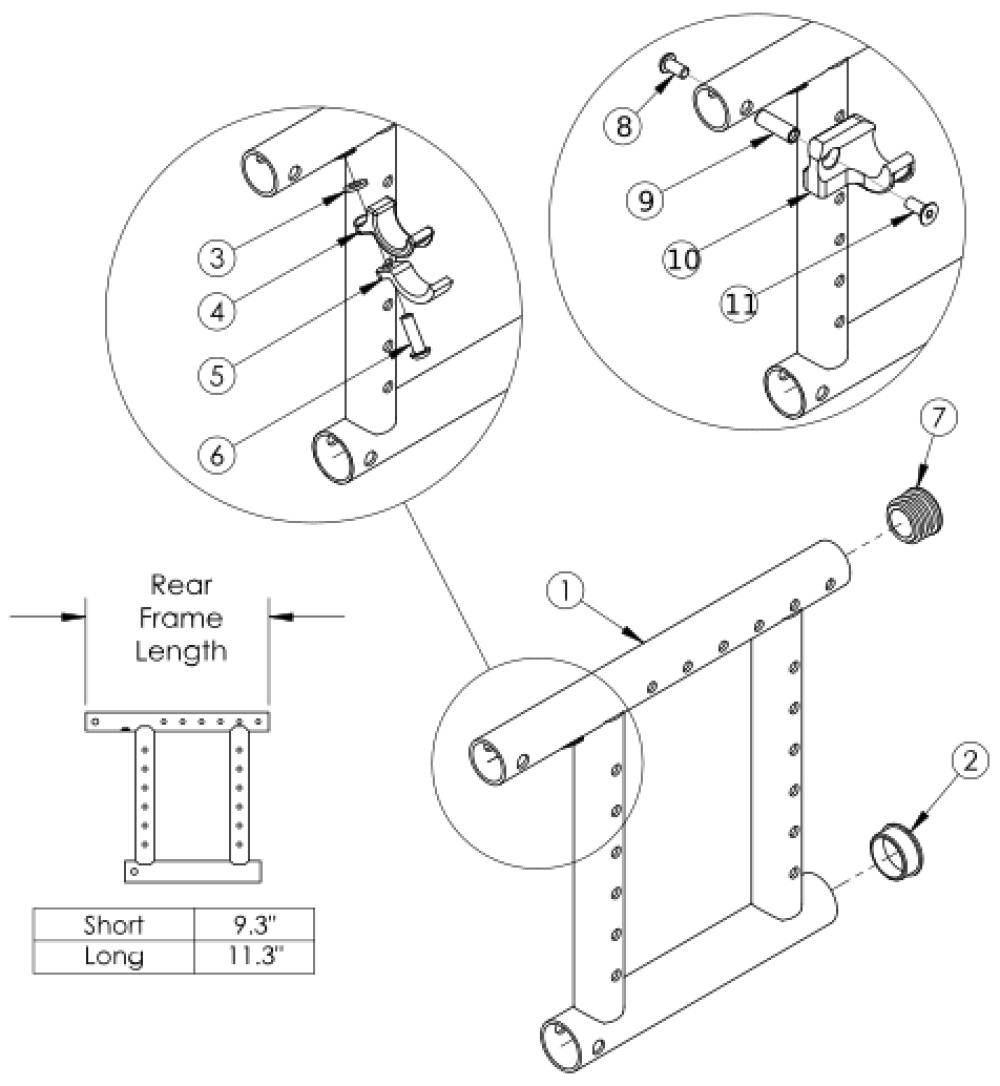

Catalyst 5 Reclining Rear Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
3, 4, 5, 6 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each
$18.82
EA
8, 9, 10a, 11 111569 Seat Hook and Support Hardware Kit Seating System Right Front Frame / Left Rear Frame Catalyst- This kit contains quantity of 1 each
$31.97
EA
8, 9, 10b, 11 111570 Seat Hook and Support Hardware Kit, Seating System Left Front Frame / Right Rear Frame Catalyst- This kit contains quantity of 1 each
$31.97
EA
1a, 2, 7 505243_ _ _ Frame Assembly, Catalyst Reclining Rear, Left, Short N/A EA Please Call
1c, 2, 7 505245_ _ _ Frame Assembly, Catalyst Reclining Rear, Right, Short N/A EA Please Call
1b, 2, 7 505244_ _ _ Frame Assembly, Catalyst Reclining Rear, Left, Long N/A EA Please Call
1d, 2, 7 505246_ _ _ Frame Assembly, Catalyst Reclining Rear, Right, Long N/A EA Please Call
1a, 2, 7 114410_ _ _ Frame Assembly, Catalyst Reclining Rear with Side Guard Mount Modification, Left, Short N/A EA Please Call
1c, 2, 7 114412_ _ _ Frame Assembly, Catalyst Reclining Rear with Side Guard Mount Modification, Right, Short N/A EA Please Call
1b, 2, 7 114411_ _ _ Frame Assembly, Catalyst Reclining Rear with Side Guard Mount Modification, Left, Long N/A EA Please Call
1d, 2, 7 114413_ _ _ Frame Assembly, Catalyst Reclining Rear with Side Guard Mount Modification, Right, Long
$264.43
EA
2 100532 Tube End Plug 1 1/8"
$2.84
EA
3 100831 1/2" Washer OD .040" Thick
$1.71
EA
4 000003 Seat Hook, Catalyst
$8.33
EA
5 000004 Seat Hook Support, Catalyst
$7.09
EA
6 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.71
EA
7 100804 Tube End Plug 1"
$1.71
EA
8 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.71
EA
9 000065 M6 x 23.68 Threaded Barrel
$4.47
EA
10a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$23.53
EA
10b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$23.53
EA
11 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.28
EA
