Catalyst 5

Name: Catalyst 5: Adult Angle Adjustable Locking Extendable Flip Up Armrest
Manufacturer: Ki Mobility

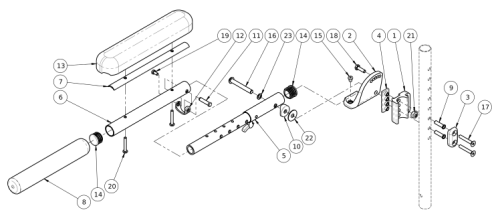

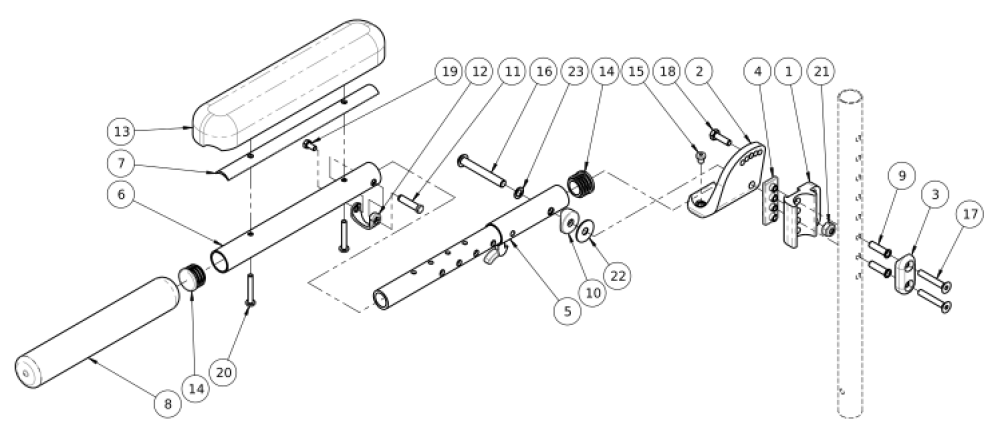

Adult Angle Adjustable Locking Extendable Flip Up Armrest parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 504315 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, PAIR
$547.37
EA
1a, 2a, 3 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 504313 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, Right
$273.68
EA
1b, 2b, 3 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 504314 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, Left
$273.68
EA
1 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 504318 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, PAIR
$552.08
EA
1a, 2a, 3 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 504316 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, Right
$276.04
EA
1b, 2b, 3 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 504317 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, Left
$276.04
EA
1 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 504321 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, PAIR
$489.75
EA
1a, 2a, 3 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 504319 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, Right
$244.88
EA
1b, 2b, 3 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 504320 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, Left
$244.88
EA
1 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 504324 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, PAIR
$494.45
EA
1a, 2a, 3 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 504322 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, Right
$247.23
EA
1b, 2b, 3 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 504323 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, Left
$247.23
EA
5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 506104 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, PAIR
$321.49
EA
5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 506102 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, Right
$160.75
EA
5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 506103 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, Left
$160.75
EA
5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 506107 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, PAIR
$326.19
EA
5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 506105 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, Right
$163.11
EA
5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 506106 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, Left
$163.11
EA
5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 506110 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, PAIR
$296.80
EA
5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 506108 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, Right
$148.41
EA
5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 506109 Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, Left
$148.41
EA
5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 506113 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, PAIR
$301.50
EA
5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 506111 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, Right
$150.75
EA
5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 506112 Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, Left
$150.75
EA
1 - 4, 9, 15, 17, 18, 21 504312 Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, PAIR
$121.55
EA
1a, 2a, 3, 4, 9, 15, 17, 18, 21 504310 Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, Right
$60.76
EA
1b, 2b, 3, 4, 9, 15, 17, 18, 21 504311 Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, Left
$60.76
EA
1a 002836 Locking Flip Up Arm Mount Bracket Right
$10.92
EA
1b 002837 Locking Flip Up Arm Mount Bracket Left
$10.92
EA
2a 002838 Locking Flip Up Arm Index Bracket Right
$17.65
EA
2b 002839 Locking Flip Up Arm Index Bracket Left
$17.65
EA
3 002840 Locking Flip Up Arm Dual Saddle 1"OD x 1"SP
$6.12
EA
4 002841 Locking Flip Up Arm Nut Plate
$14.12
EA
5 003162 Locking Flip Up Arm Steel Tube Assembly- Used on all Catalyst, Rogue XP, Liberty FT and Focus chairs
$109.78
EA
6a 002844 Locking Flip Up Arm Extension Tube Desk
$10.59
EA
6b 002845 Locking Flip Up Arm Extension Tube Full
$12.94
EA
7a 002849 Locking Flip Up Arm Pad Adapter Desk
$5.88
EA
7b 002850 Locking Flip Up Arm Pad Adapter Full
$5.88
EA
6a, 8a, 14 504337 Locking Flip Up Arm Extension and Foam Grip Kit, Desk
$25.75
EA
6b, 8b, 14 504338 Locking Flip Up Arm Extension and Foam Grip Kit, Full
$28.58
EA
9 002914 Sleeve .266 OD x .236 ID x .97 LG- Not used on Rogue XP models. Only used on Catalyst with Reclining Back. Always used on Liberty FT and Focus models.
$4.23
EA
10 001271 1" Saddle, .323 Hole
$1.81
EA
11 000987 Threaded Fastener
$4.23
EA
12 000988 Fastener Retainer
$4.41
EA
13a 100500 Arm Pad Full
$26.45
EA
13b 100501 Arm Pad Desk
$26.45
EA
14 100804 Tube End Plug 1"
$1.77
EA
15 102870 Bumper, .375 HD x .25 Stem
$1.17
EA
16 102865 M8 X 60, BHCS, 28mm THD, BZ
$6.47
EA
17 101819 M6 x 40 FHCS Blk Zn
$1.17
EA
18 101823 M6 x 20 HHCS Blk Zn
$1.17
EA
19 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
20 102867 M5 X 35 PAN HD PHP, BLK ZN- Used with arm pads
$1.17
21 100659 M8 Nylock Nut Blk Zn
$1.17
EA
22 102866 Washer, Nylon, 1"OD x.318ID x.04
$1.17
EA
23 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
