Catalyst 5
Name: Catalyst 5: Catalyst Stroller Handle Back Post (depth Adjustable)
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

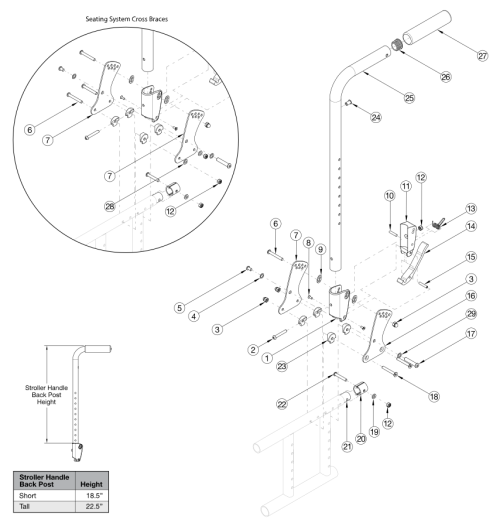

Part Picture
(Click on image to enlarge)
This backrest style was released February 8th, 2021
If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 15, 16a, 17 - 20, 22 - 24, 25a, 26, 27, 29 | 112597 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Short, Left Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$198.24
|
EA |
|
| 1 - 15, 16b, 17 - 20, 22 - 24, 25a, 26, 27, 29 | 112598 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Short, Right Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$198.24
|
EA |
|
| 1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27, 29 | 112599 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Tall, Left Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$198.24
|
EA |
|
| 1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27, 29 | 112600 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Std Cross Braces, Tall, Right Side- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$198.24
|
EA |
|
| 1 - 15, 17 - 20, 22 - 24, 25a, 26, 27, 28 | 112601 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Seating Cross Braces, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$203.54
|
EA |
|
| 1 - 15, 17 - 20, 22 - 24, 25b, 26, 27, 28 | 112602 | Stroller Handle Back Post with Grip Assembly with All Hardware, for Seating Cross Braces, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$203.54
|
EA |
|
| 24, 25a, 26, 27 | 506811 | Stroller Handle Back Post with Grip Assembly, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$55.59
|
EA |
|
| 24, 25b, 26, 27 | 506812 | Stroller Handle Back Post with Grip Assembly, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$55.59
|
EA |
|
| 1 - 15, 16a, 17 - 20, 22 - 23, 29 | 112603 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Left Side |
$149.55
|
EA |
|
|
| 1 - 15, 16b, 17 - 20, 22 - 23, 29 | 112604 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Right Side |
$149.55
|
EA |
|
|
| 1 - 15, 17 - 20, 22 - 23, 28 | 112605 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, One Side |
$154.85
|
EA |
|
|
| 1 - 15, 17 - 20, 22 - 23, 28 | 112606 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, PAIR |
$309.67
|
EA |
|
|
| 1, 9 | 503834 | Cover Plate, Latch Insert Kit |
$28.36
|
EA |
|
|
| 2 | 100797 | M6 x 40 BHCS BLK ZC |
$1.17
|
EA |
|
|
| 3 | 100558 | M6 NYL INS Domed Cap L/N ZC |
$1.17
|
EA |
|
|
| 4 | 101701 | Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W |
$2.94
|
EA |
|
|
| 5 | 101184 | M6 x 10 BTN SHCS BLKZC w/Patch |
$1.77
|
EA |
|
|
| 6 | 100670 | M6 x 45 BTN SHCS BLK ZC |
$1.77
|
EA |
|
|
| 7 | 111833 | Depth Adjustable Back Plate, Folding- Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. | Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. |
$25.98
|
EA |
|
| 8 | 101818 | M4 x 10 FHCS BLKZC w/Patch |
$1.17
|
EA |
|
|
| 9 | 001897 | Washer, Dual, PSA |
$2.34
|
EA |
|
|
| 10 | 102694 | Dowel Pin, M5 X 24, Blk Zn |
$1.77
|
EA |
|
|
| 11 | 001895 | Latch Insert, Folding Backrest |
$7.39
|
EA |
|
|
| 12 | 100658 | M6 Nylock Nut Blk Zn- Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. | Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. |
$1.17
|
EA |
|
| 13 | 001896 | Spring, Backrest Latch |
$0.60
|
EA |
|
|
| 14 | 001893 | Latch Lever, Backrest |
$14.94
|
EA |
|
|
| 15 | 002513 | Threaded Barrel, 5mm OD x M4 |
$2.17
|
EA |
|
|
| 16a | 111835 | Depth Adjustable Back Plate, Inner, Folding, Left- Only used when standard cross braces are present | Only used when standard cross braces are present |
$25.98
|
EA |
|
| 16b | 111834 | Depth Adjustable Back Plate, Inner, Folding, Right- Only used when standard cross braces are present | Only used when standard cross braces are present |
$25.98
|
EA |
|
| 17 | 003284 | Binding Post, 8mm x 40mm x M6 |
$1.64
|
EA |
|
|
| 18 | 101592 | M6 x 45 CLS10.9 DIN7991 FHCS BLKZC |
$2.94
|
EA |
|
|
| 19 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 20 | 114443 | Tube Spacer, Black, 1" OD x .083" x .80 LG- Replacement for part number 001230 | Replacement for part number 001230 |
$3.78
|
EA |
|
| 21 | 000605 | Depth Adjustable Frame Extension Tube, Catalyst/Spark |
$41.58
|
EA |
|
|
| 22 | 101811 | M6 x 35 BHCS Blk Zn |
$1.17
|
EA |
|
|
| 23 | 000612 | 1" Half Saddle Washer |
$2.15
|
|
||
| 26 | 100804 | Tube End Plug 1" |
$1.77
|
EA |
|
|
| 28 | 102803 | Washer Flat .250 x .500 x .027 HX BLZ- Only used when seating system cross braces are present | Only used when seating system cross braces are present |
$1.77
|
EA |
|
| 29 | 101861 | Nylon Washer 5/16 x 1/2 x .03- Only used when standard cross braces are present | Only used when standard cross braces are present |
$0.60
|
EA |
|
